Inventory scores and metal futures returns #
This notebook illustrates the points discussed in the post “Inventory scores and metal futures returns”, available on the Macrosynergy website.
Inventory scores are quantamental (point-in-time) indicators of the inventory states and dynamics of economies or commodity sectors. Inventory scores plausibly predict base metal futures returns through two effects. First, they influence the convenience yield of a metal and the discount at which futures are trading relative to physical stock. Second, they indicate the need for restocking at the raw material and finished goods side. Inventory scores are available for finished manufacturing goods and base metals themselves. Empirical analysis for 2000-2024 shows strong predictive power of finished goods inventory scores and some modest additional predictive power of commodity-specific inventory scores.
This notebook provides the essential code required to replicate the analysis discussed in the post.
The notebook covers the three main parts:
-
Get Packages and JPMaQS Data: This section is responsible for installing and importing the necessary Python packages used throughout the analysis.
-
Transformations and Checks: In this part, the notebook performs calculations and transformations on the data to derive the relevant signals and targets used for the analysis, including normalisation or building simple linear composite indicators.
-
Value checks: This is the most critical section, where the notebook calculates and implements the simple trading strategy based on the hypothesis tested in the post. This section involves backtesting simple trading strategies. In particular, the post investigates the predictive relationship of manufacturing inventory assessment scores on metal futures returns.
It is important to note that while the notebook covers a selection of indicators and strategies used for the post’s main findings, users can explore countless other possible indicators and approaches. Users can modify the code to test different hypotheses and strategies based on their research and ideas. Best of luck with your research!
Get packages and JPMaQS data #
# Run only if needed! The cell upgrades macrosynergy package to the latest version
"""
%%capture
! pip install macrosynergy --upgrade"""
'\n%%capture\n! pip install macrosynergy --upgrade'
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import seaborn as sns
import os
import macrosynergy.management as msm
import macrosynergy.panel as msp
import macrosynergy.signal as mss
import macrosynergy.pnl as msn
import macrosynergy.visuals as msv
from macrosynergy.download import JPMaQSDownload
import warnings
warnings.simplefilter("ignore")
This notebook downloads selected indicators for the following cross-sections: AUD (Australian dollar), BRL (Brazilian real), CAD (Canadian dollar), CHF (Swiss franc), CLP (Chilean peso), CNY (Chinese yuan), COP (Colombian Peso), CZK (Czech koruna), EUR (euro), GBP (British pound), HKD (Hong Kong dollar), HUF (Hungarian forint), IDR (Indonesian rupiah), ILS (Israeli shekels), INR (Indian rupee), JPY (Japanese yen), KRW (Korean won), MXN (Mexican peso), MYR (Malaysian ringgit), NOK (Norwegian Krone), NZD (New Zealand dollar), PEN (Peruvian sol), PHP (Philippine peso), PLN (Polish złoty), RON (Romanian leu), RUB (Russian ruble), SGD (Singapore dollar), SEK (Swedish krona), THB (Thai baht), TRY (Turkish lira), TWD (Taiwanese dollar), USD (U.S. dollar), ZAR (South African rand). For convenience purposes, the cross-sections are collected in a few lists, such as Developed markets large currencies (“EUR”, “JPY”, “USD”), emerging markets latam (“BRL”, “COP”, “CLP”, “MXN”, “PEN”), etc. In addition, the notebook downloads Directional risk basket returns for GLB (global directional risk basket) and for global equity index future basket (GEQ). For weigting and explanations please see here
The notebook downloads the following JPMaQS categories: Commodity inventories for the following metals:
-
ALM
: Aluminium -
CPR
: Copper -
LED
: Lead -
NIC
: Nickel -
TIN
: London Metal Exchange Tin -
ZNC
: Zinc
The notebook also uses the following categories: Manufacturing confidence scores , Global production shares , Directional risk basket returns , Equity index future returns , and Commodity future returns .
cids_bam = ["ALM", "CPR", "LED", "NIC", "TIN", "ZNC"]
cids_lme = list(set(cids_bam) - set(["TIN"])) # metals with LME inventory data
minvs = [
"XINVSCORELME_SA",
"XINVSCORELME_SA_3MMA",
"XINVSCORELME_SA_D3M3ML3",
"XINVSCORELME_SA_D6M6ML6",
"XINVSCORELME_SA_3MMA_D1M1ML12",
]
mrets = ["COXR_VT10", "COXR_NSA", "COCRR_NSA", "COCRR_VT10"]
xcats_bam = minvs + mrets
tix_bam = [cid + "_" + xcat for cid in cids_bam for xcat in xcats_bam]
cids_dmlc = ["EUR", "JPY", "USD"] # DM large currency areas
cids_dmsc = ["AUD", "CAD", "CHF", "GBP", "NOK", "NZD", "SEK"] # DM small currency areas
cids_latm = ["BRL", "COP", "CLP", "MXN", "PEN"] # Latam
cids_emea = ["CZK", "HUF", "ILS", "PLN", "RON", "RUB", "TRY", "ZAR"] # EMEA
cids_emas = ["IDR", "INR", "KRW", "MYR", "PHP", "THB", "TWD"] # EM Asia flex
cids_apeg = ["CNY", "HKD", "SGD"] # EM Asia peg
cids = cids_dmlc + cids_dmsc + cids_latm + cids_emea + cids_emas + cids_apeg
invs = [
"MBISCORE_SA",
"MBISCORE_SA_3MMA",
"MBISCORE_SA_D1M1ML1",
"MBISCORE_SA_D3M3ML3",
"MBISCORE_SA_D1Q1QL1",
"MBISCORE_SA_D6M6ML6",
"MBISCORE_SA_D2Q2QL2",
"MBISCORE_SA_3MMA_D1M1ML12",
"MBISCORE_SA_D1Q1QL4",
]
econ = ["IVAWGT_SA_1YMA", "IVAWGT_SA_3YMA", "GB05YXR_NSA"]
xcats = invs + econ
tix_invs = [cid + "_" + xcat for cid in cids for xcat in xcats]
# Complete ticker list
tix_add = ["GLB_DRBXR_NSA", "GEQ_DRBXR_NSA", "USD_EQXR_NSA"]
tickers = tix_bam + tix_invs + tix_add
The JPMaQS indicators we consider are downloaded using the J.P. Morgan Dataquery API interface within the
macrosynergy
package. This is done by specifying ticker strings, formed by appending an indicator category code
DB(JPMAQS,<cross_section>_<category>,<info>)
, where
value
giving the latest available values for the indicator
eop_lag
referring to days elapsed since the end of the observation period
mop_lag
referring to the number of days elapsed since the mean observation period
grade
denoting a grade of the observation, giving a metric of real-time information quality.
After instantiating the
JPMaQSDownload
class within the
macrosynergy.download
module, one can use the
download(tickers,start_date,metrics)
method to easily download the necessary data, where
tickers
is an array of ticker strings,
start_date
is the first collection date to be considered and
metrics
is an array comprising the times series information to be downloaded. For more information see
here
# Download series from J.P. Morgan DataQuery by tickers. to speed up running time, only using 3 years
start_date = "1995-01-01"
# Retrieve credentials
client_id: str = os.getenv("DQ_CLIENT_ID")
client_secret: str = os.getenv("DQ_CLIENT_SECRET")
with JPMaQSDownload(client_id=client_id, client_secret=client_secret) as dq:
df = dq.download(
tickers=tickers,
start_date=start_date,
suppress_warning=True,
metrics=["value"],
report_time_taken=True,
show_progress=True,
)
Downloading data from JPMaQS.
Timestamp UTC: 2024-05-03 14:41:29
Connection successful!
Requesting data: 100%|██████████| 23/23 [00:04<00:00, 4.94it/s]
Downloading data: 100%|██████████| 23/23 [00:08<00:00, 2.82it/s]
Time taken to download data: 14.83 seconds.
Some expressions are missing from the downloaded data. Check logger output for complete list.
188 out of 453 expressions are missing. To download the catalogue of all available expressions and filter the unavailable expressions, set `get_catalogue=True` in the call to `JPMaQSDownload.download()`.
Some dates are missing from the downloaded data.
7657 out of 7657 dates are missing.
dfx = df.copy().sort_values(["cid", "xcat", "real_date"])
Renaming and availability #
Rename quarterly tickers to roughly equivalent monthly tickers to simplify subsequent operations.
dict_repl = {
"MBISCORE_SA_D1Q1QL1": "MBISCORE_SA_D3M3ML3",
"MBISCORE_SA_D2Q2QL2": "MBISCORE_SA_D6M6ML6",
"MBISCORE_SA_D1Q1QL4": "MBISCORE_SA_3MMA_D1M1ML12",
}
for key, value in dict_repl.items():
dfx["xcat"] = dfx["xcat"].str.replace(key, value)

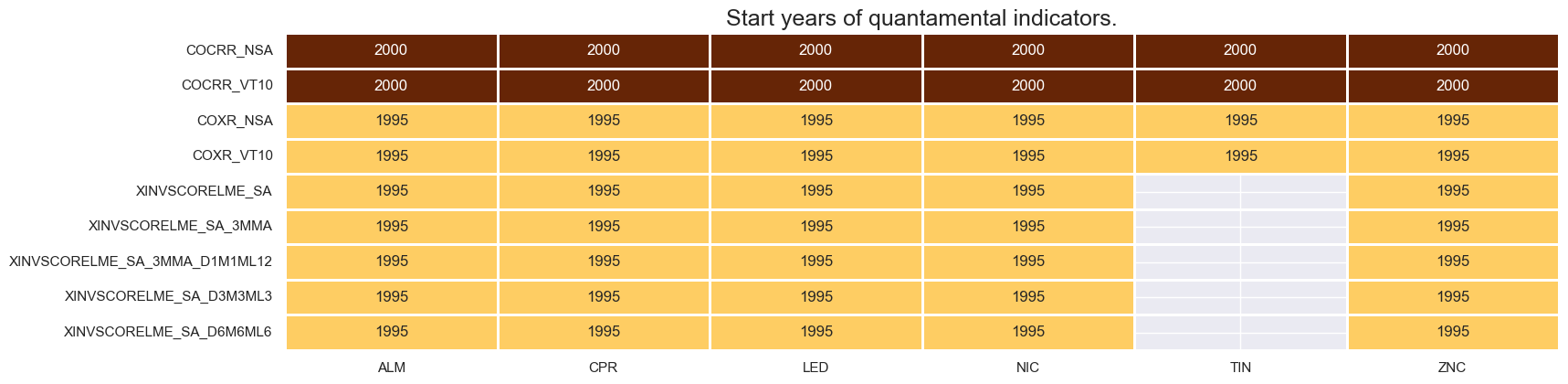

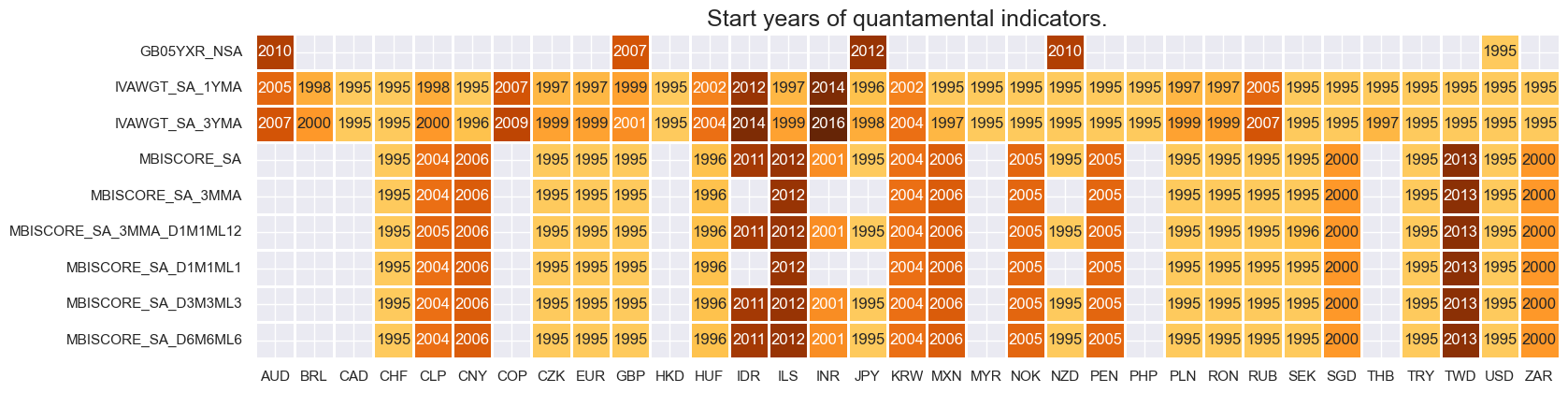

It is important to assess data availability before conducting any analysis. It allows for the identification of any potential gaps or limitations in the dataset, which can impact the validity and reliability of analysis and ensure that a sufficient number of observations for each selected category and cross-section is available, as well as determining the appropriate time periods for analysis.
check_availability() functions list visualizes start years and the number of missing values at or before the end date of all selected cross-sections and across a list of categories. It also displays unavailable indicators as gray fields and color codes for the starting year of each series, with darker colors indicating more recent starting years.
msm.check_availability(df, xcats=xcats_bam, cids=cids_bam, missing_recent=False)
msm.check_availability(dfx, xcats=xcats, cids=cids, missing_recent=False)
Transformation and checks #
Global finished goods inventory scores #
The
linear_composite
method from the
macrosynergy
package, is employed to aggregate each individual category score across markets into a unified composite indicator with new currency identifier
GMB
(Global metal basket). This method offers the flexibility to assign specific weights to each market, which can vary over time. In this instance, we use as weights respective global production shares for all available emerging and developed markets based on a 1-year moving average (
IVAWGT_SA_1YMA
). The outcome is a new weighted time series uniquely identified by the cross-section GMB. This methodological approach ensures that each market contributes proportionally to the composite measure. This process is repeated for all selected indicators collected in the list
iscores
.
iscores = [
"MBISCORE_SA_3MMA",
"MBISCORE_SA_3MMA_D1M1ML12",
"MBISCORE_SA_D3M3ML3",
"MBISCORE_SA_D6M6ML6",
]
xcatx = iscores
# creating the linear composite for each of the Manufacturing categories
for xc in xcatx:
dfa = msp.linear_composite(
df=dfx,
xcats=xc,
cids=cids,
weights="IVAWGT_SA_1YMA",
new_cid="GMB",
complete_cids=False,
)
dfx = msm.update_df(dfx, dfa)

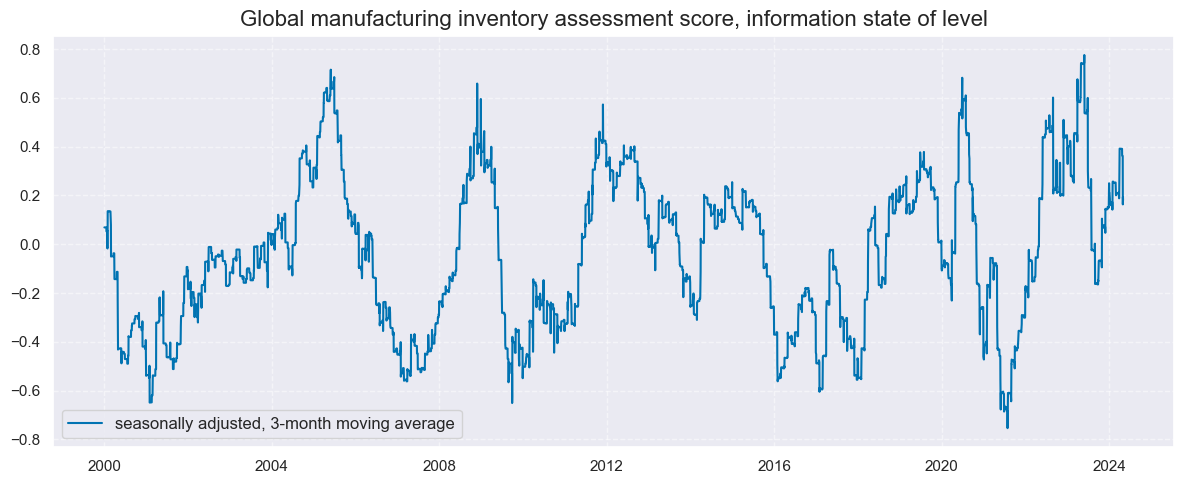

view_timelines()
from the
macrosynergy
package is used to plot the timeline of the resulting weighted global manufacturing inventory assessment score, 3-month moving average
MBISCORE_SA_3MMA
:
xcatx = ["MBISCORE_SA_3MMA"]
msp.view_timelines(
dfx,
cids="GMB",
xcats=xcatx,
title="Global manufacturing inventory assessment score, information state of level",
title_fontsize=16,
xcat_labels=["seasonally adjusted, 3-month moving average"],
size=(12, 5),
)

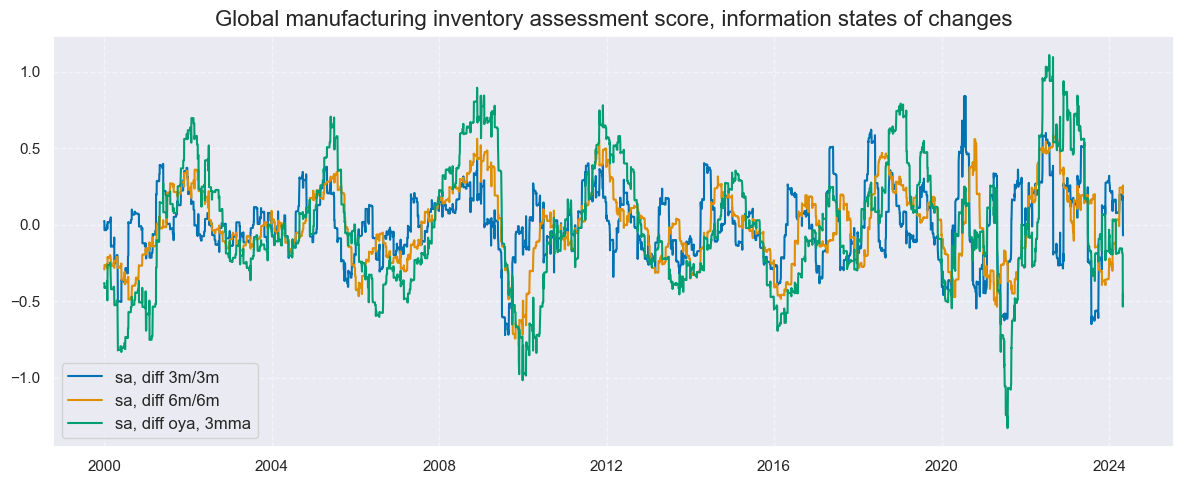

view_timelines()
from the
macrosynergy
package is used to compare the timelines of information states of changes for global weighted indicators:
xcatx = [
"MBISCORE_SA_D3M3ML3",
"MBISCORE_SA_D6M6ML6",
"MBISCORE_SA_3MMA_D1M1ML12",
]
msp.view_timelines(
dfx,
cids="GMB",
xcats=xcatx,
title="Global manufacturing inventory assessment score, information states of changes",
title_fontsize=16,
xcat_labels=["sa, diff 3m/3m",
"sa, diff 6m/6m",
"sa, diff oya, 3mma"],
size=(12, 5),
)
The following cell populates the columns “MBISCORE_SA_3MMA”, “MBISCORE_SA_3MMA_D1M1ML12”, “MBISCORE_SA_D3M3ML3”, and “MBISCORE_SA_D6M6ML6” for metal contracts. It essentially replicates the values from the respective weighted baskets and assigns them to their corresponding contracts.
calcs = []
for xc in iscores:
calcs += [f"{xc} = iGMB_{xc}"] # pseudo commodity indicators
dfa = msp.panel_calculator(dfx, calcs=calcs, cids=cids_bam)
dfx = msm.update_df(dfx, dfa)
Metals basket inventories (and returns) #
Commodity basket returns are calculated as equally weighted vol target-adjusted positions with help
macrosynergy
basket
class
cos = [cid + "_CO" for cid in cids_bam]
dfa = pd.DataFrame(columns=dfx.columns)
for ad in ["NSA", "VT10"]:
mb = msp.Basket(
dfx,
contracts=cos,
ret="XR_" + ad,
cry="CRR_" + ad,
)
mb.make_basket(weight_meth="equal", basket_name="GMB") # each base metal has same weight in the basket
dfaa = mb.return_basket().sort_values(["cid", "xcat", "real_date"])
dfa = msm.update_df(dfa, dfaa)
The
linear_composite
method from the macrosynergy package is utilized to merge individual category scores from multiple markets into a unified composite indicator, designated by the cross-section identifier
GMB
(Global metal basket).
xcatx = minvs + mrets
cidx = cids_lme
for xc in xcatx:
dfa = msp.linear_composite(
df=dfx,
xcats=xc,
cids=cidx,
new_cid="GMB",
complete_cids=False,
)
dfx = msm.update_df(dfx, dfa)

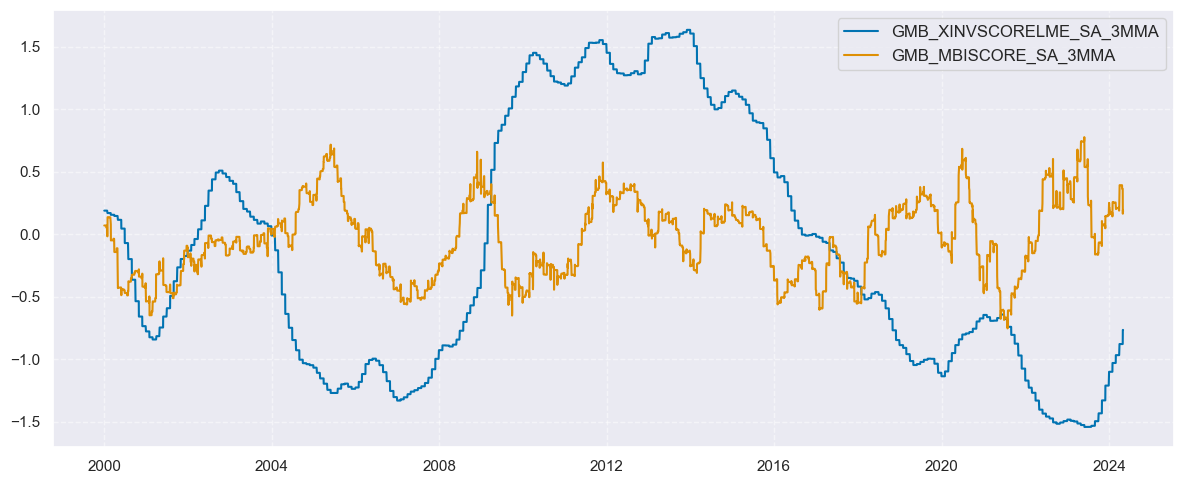

In the following plot, we review the normalized global timelines for key metrics: Excess Commodity Inventories related to the London Metal Exchange, seasonally adjusted and transformed into a 3-month moving average z-score, alongside Manufacturing inventory assessment score, also seasonally adjusted and converted into a 3-month moving average z-score.
xcatx = ["XINVSCORELME_SA_3MMA", "MBISCORE_SA_3MMA"]
msp.view_timelines(
dfx,
cids="GMB",
xcats=xcatx,
title=None,
title_fontsize=16,
size=(12, 5),
)

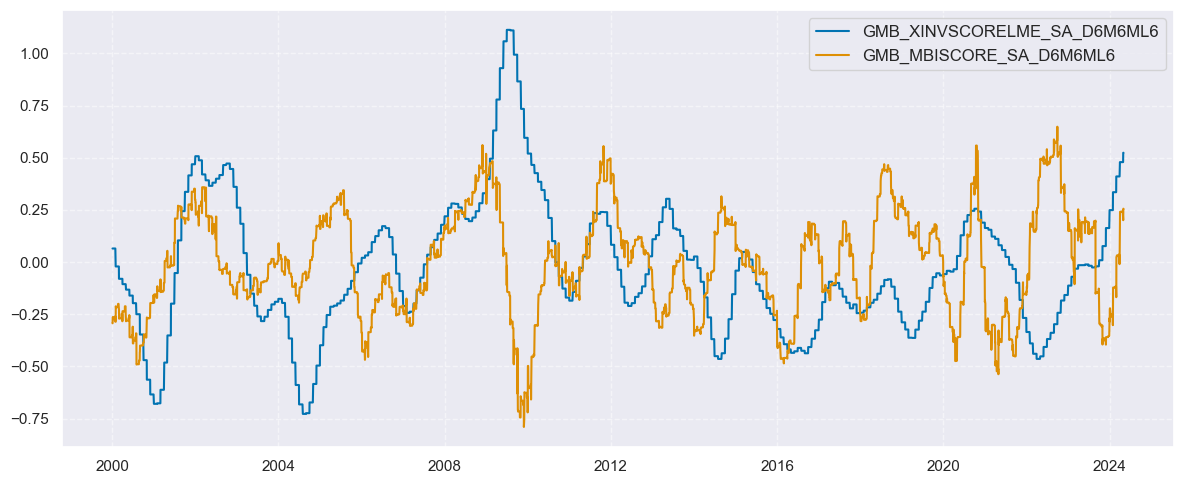

In this plot, we examine the normalized global timelines for the six-month changes (diff 6m/6m) in the same indicators as above: Excess Commodity Inventories linked to the London Metal Exchange, which are seasonally adjusted, and Manufacturing inventory assessment score, similarly seasonally adjusted and converted into a 6-month moving average z-score.
xcatx = ["XINVSCORELME_SA_D6M6ML6", "MBISCORE_SA_D6M6ML6"]
msp.view_timelines(
dfx,
cids="GMB",
xcats=xcatx,
title=None,
title_fontsize=16,
size=(12, 5),
)

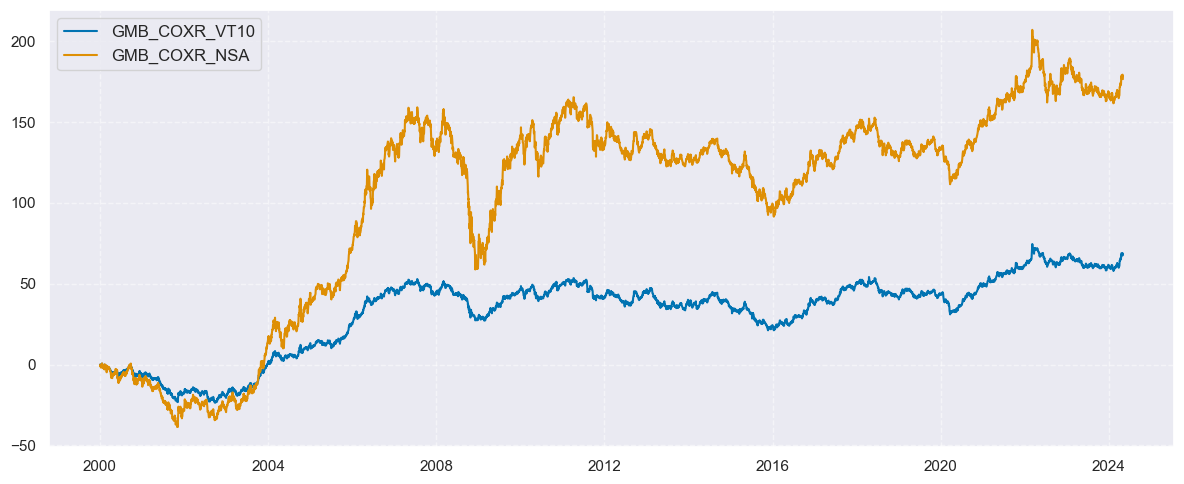

In this plot, we analyze two cumulative outright global commodity returns:
COXR_VT10
representing commodity future returns as a percentage of notional, and
COXR_VT10_10
, indicating commodity future returns adjusted for a 10% volatility target for the global metal basket (
GMB
)
xcatx = ["COXR_VT10", "COXR_NSA"]
msp.view_timelines(
dfx,
cids="GMB",
xcats=xcatx,
cumsum = True,
title=None,
title_fontsize=16,
size=(12, 5),
)
Metals-specific features #

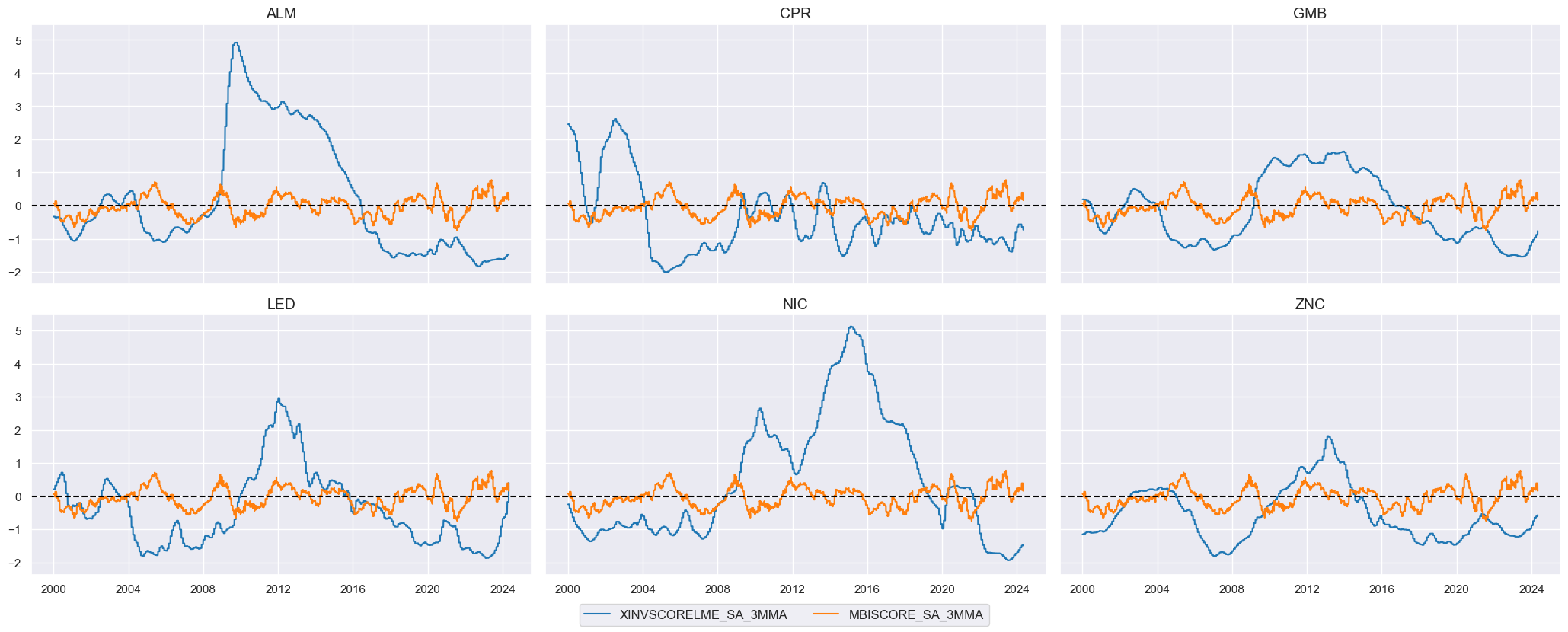

The displayed panel examines excess commodity inventories, seasonally adjusted, presented as a z-score with a 3-month moving average (
XINVSCORELME_SA_3MMA
), alongside Manufacturing inventory assessment scores, also seasonally adjusted and depicted as a z-score with a 3-month moving average (
MBISCORE_SA_3MMA
). This analysis is conducted for individual London Metal Exchange metals as well as for the basket.
cids_lmx = cids_lme + ["GMB"] # operations should include the metals basket
xcatx = ["XINVSCORELME_SA_3MMA", "MBISCORE_SA_3MMA"]
msp.view_timelines(
dfx,
cids=cids_lmx,
xcats=xcatx,
title=None,
title_fontsize=16,
size=(12, 5),
)

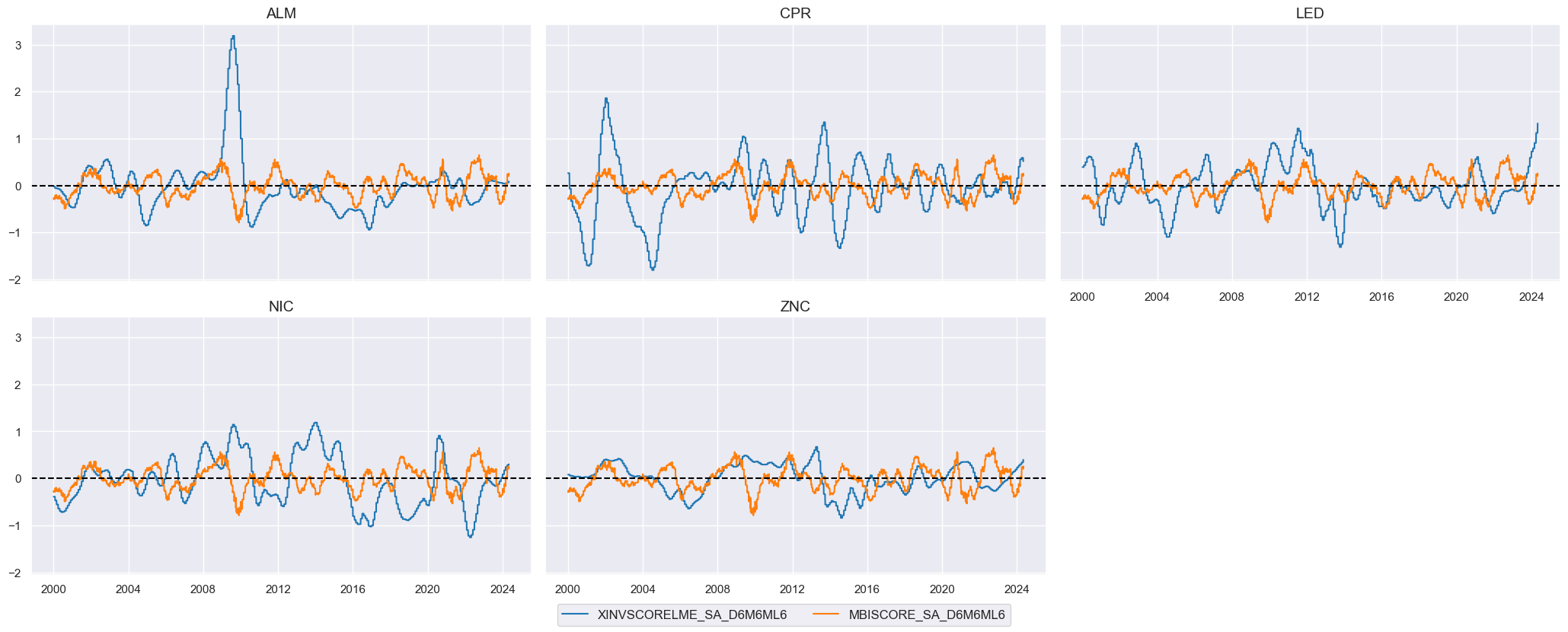

In the forthcoming plot, we examine the normalized global timelines for the six-month changes (diff 6m/6m) in two key indicators: Excess Commodity Inventories associated with the London Metal Exchange, seasonally adjusted, and Manufacturing inventory assessment scores, similarly seasonally adjusted, with each analysis performed separately for individual LME contracts.
xcatx = ["XINVSCORELME_SA_D6M6ML6", "MBISCORE_SA_D6M6ML6"]
msp.view_timelines(
dfx,
cids=cids_lme,
xcats=xcatx,
title=None,
title_fontsize=16,
size=(12, 5),
)
The process of standardizing related to excess commodity inventories, manufacturing inventory assessment scores and their changes is achieved through the use of the
make_zn_scores()
function from the
macrosynergy
package. Normalization is a key step in macroeconomic analysis, especially when dealing with data across different categories that vary in units and time series characteristics. In this process, the indicators are centered around a neutral value (zero) using historical data. This normalization is recalculated monthly. To mitigate the impact of statistical outliers, a cutoff of 3 standard deviations is employed. Post-normalization, the indicators (z-scores) are labeled with the suffix
_ZN
, indicating their adjusted status.
itypes = ["MBISCORE_SA", "XINVSCORELME_SA"]
itrans = ["3MMA", "D3M3ML3", "D6M6ML6", "3MMA_D1M1ML12"]
xcatx = [f"{itype}_{itran}" for itype in itypes for itran in itrans]
cidx = cids_lmx
for xc in xcatx:
dfa = msp.make_zn_scores(
dfx,
xcat=xc,
cids=cidx,
min_obs=3 * 261,
neutral="zero",
thresh=3,
est_freq="m",
postfix = "_ZN"
)
dfx = msm.update_df(dfx, dfa)

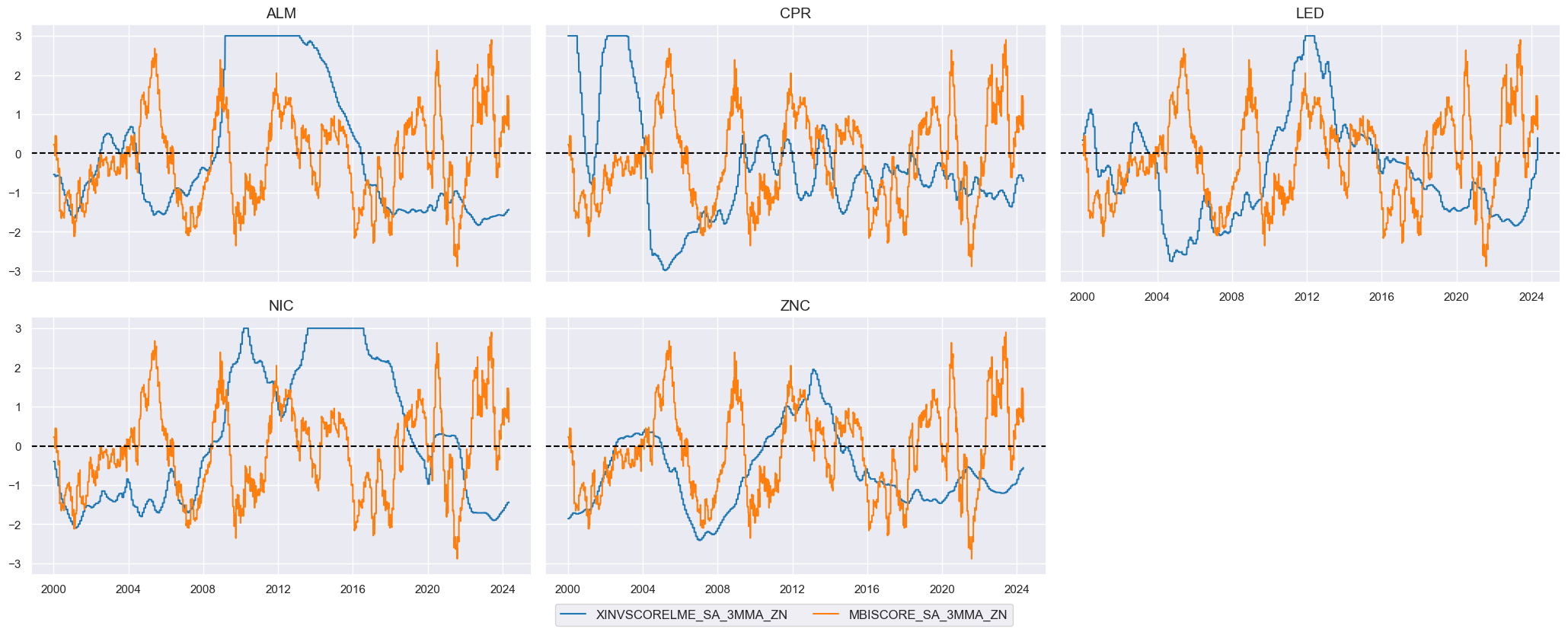

The resulting z-scores for the two key indicators are displayed below using standard
view_timelines()
from the
macrosynergy
package
xcatx = ["XINVSCORELME_SA_3MMA_ZN", "MBISCORE_SA_3MMA_ZN"]
msp.view_timelines(
dfx,
cids=cids_lme,
xcats=xcatx,
title=None,
title_fontsize=16,
size=(12, 5),
)
Here we calculate normalized scores of commodity-specific excess inventories and their differences, i.e., a score for each of the transformations mentioned above. Then, we do the same for each derivative of the manufacturing inventory assessment score. Based on these, we calculate averages of the scores of commodity inventories and manufacturing inventory assessments, which produces composite inventory scores for each base metal. They are half metal-specific and half a reflection of the state of global manufacturing inventories.
# Dictionary for inventory composites
keys = ["ISCORE_SA_" + itran + "_CZS" for itran in itrans]
values = [[f"MBISCORE_SA_{itran}_ZN", f"XINVSCORELME_SA_{itran}_ZN"] for itran in itrans]
dict_izn = dict(zip(keys, values))
# Composite for each inventory score
cidx = cids_lmx
dfa = pd.DataFrame(columns=dfx.columns)
for key, value in dict_izn.items():
dfaa = msp.linear_composite(dfx, xcats=value, cids=cidx, new_xcat=key, complete_xcats=False)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
The below panel illustrates this combination for the 3-month average levels of both types of scores.
cidx = cids_lme
itran = "3MMA"
xcatx = [
f"XINVSCORELME_SA_{itran}_ZN",
f"MBISCORE_SA_{itran}_ZN",
f"ISCORE_SA_{itran}_CZS",
]
msp.view_timelines(
dfx,
ncol=2,
cids=cidx,
xcats=xcatx,
xcat_labels=[
"Commodity inventory score of 3mma level",
"Manufacturing inventory score of 3mma level",
"Composite inventory score of 3mma level",
],

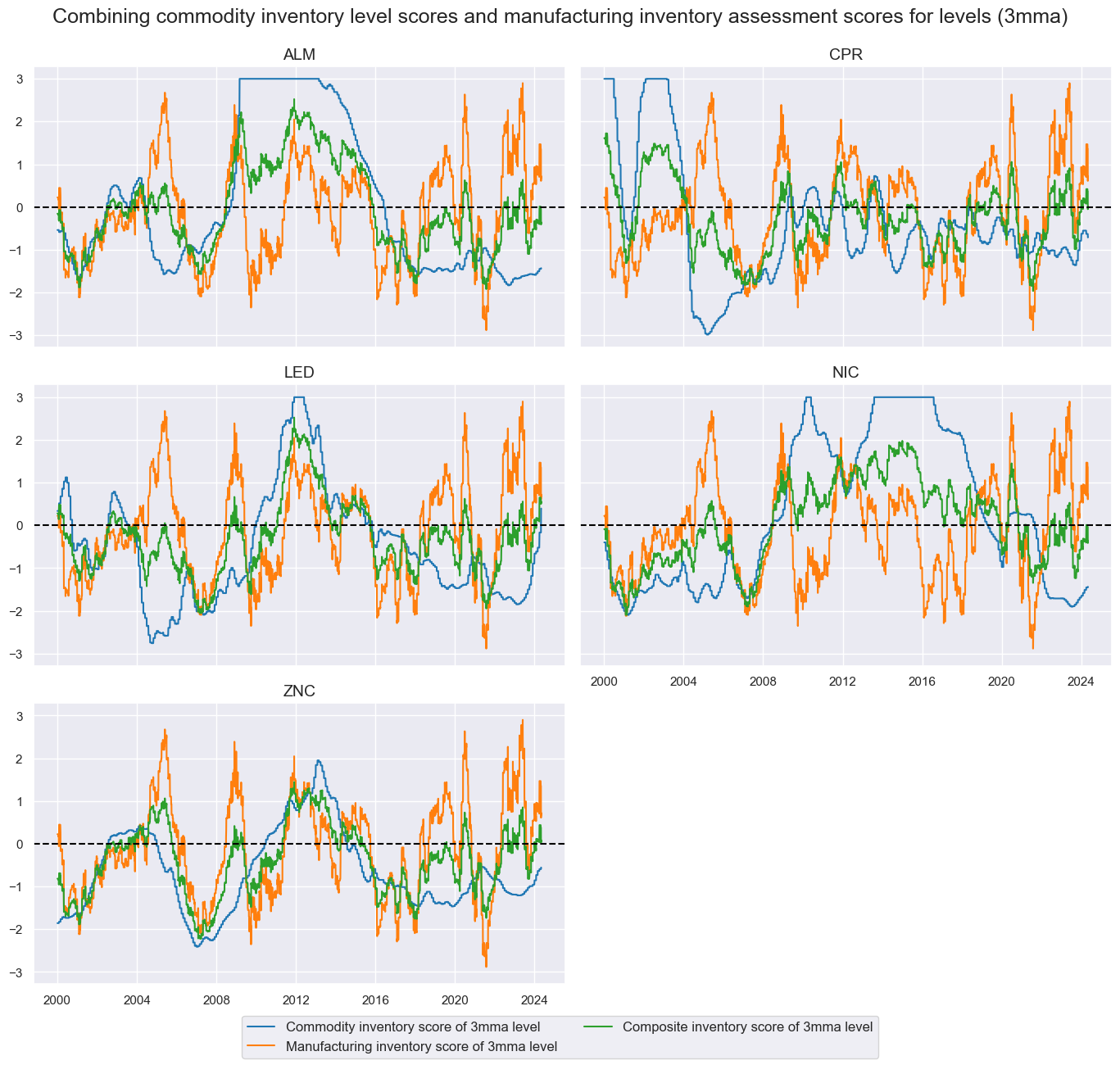

title="Combining commodity inventory level scores and manufacturing inventory assessment scores for levels (3mma)",
title_fontsize=18,
size=(12, 5),
)
analogously to the manufacturing inventory assessment scores, we calculate a composite inventory score that averages over all transformations.
# Dictionary for cross-transformation composites
scores = ["XINVSCORELME_SA", "MBISCORE_SA", "ISCORE_SA"]
cidx = cids_lmx
dfa = pd.DataFrame(columns=dfx.columns)
for score in scores:
if score is not "ISCORE_SA":
xcatx = [f"{score}_{itran}_ZN" for itran in itrans]
else:
xcatx = [f"{score}_{itran}_CZS" for itran in itrans]
dfaa = msp.linear_composite(
dfx, xcats=xcatx, cids=cidx, new_xcat=score + "_CZS", complete_xcats=False
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
The resulting time series
ISCORE_SA_CZS
is displayed below for each contract:
xcatx = ["ISCORE_SA_CZS"]
msp.view_timelines(
dfx,
cids=cids_lme,
xcats=xcatx,
ncol=2,
title="Combined commodity inventory level scores and manufacturing inventory assessment scores for levels (3mma)",
title_fontsize=16,
size=(12, 5),
)
Returns and hedging #
In this section of the notebook, we analyze Commodity future returns as a percentage of notional, using
COXR_NSA
and
COXR_VT10
, as our directional target. To effectively visualize them
EQXR_NSA
data across different contracts, we utilize two helpful functions from the Macrosynergy package:
view_ranges()
and
view_timelines()
. The

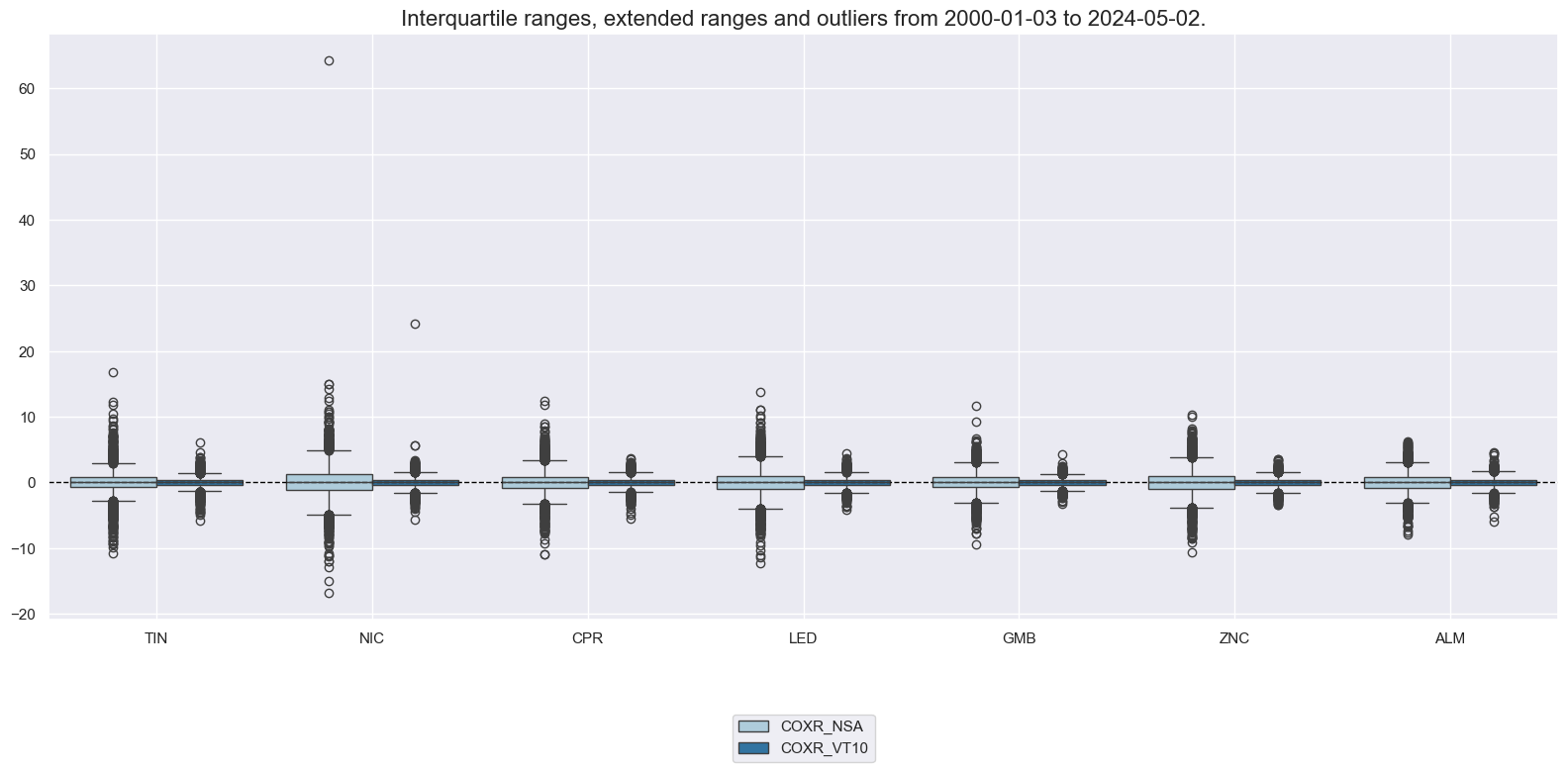

view_ranges()
function is used for plotting the distributions of means and standard deviations, while
view_timelines()
is employed for illustrating the time series of these indicators, providing a comprehensive and clear visual representation of the data.
xcatx = ["COXR_NSA", "COXR_VT10"]
cidx = cids_lme
msp.view_ranges(
dfx,
xcats=xcatx,
kind="box",
sort_cids_by="mean", # countries sorted by mean of the first category
title=None,
ylab=None,
start="2000-01-01",
)
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=2,
cumsum=True,
start="2000-01-01",
same_y=True,
all_xticks=True,
title="Base metal futures, cumulative excess returns",
title_fontsize=18,
xcat_labels=["simple excess returns", "based on 10% annualized vol target"],
)
The function
return_beta()
estimates betas (elasticities) of a return category to a benchmark. It returns either just the betas or hedged returns of the cross-sections. Hedged returns are returns on a composite position on the principal contract and the benchmark to offset the elasticity of the former with respect to the latter. If
oos
is set to True, the function calculates hedge ratios out of sample, i.e., for each period based on estimates up to the previous period. The related re-estimation frequency is set to monthly. The re-estimation is conducted at the end of the period and used as a hedge ratio for all days in the following period.

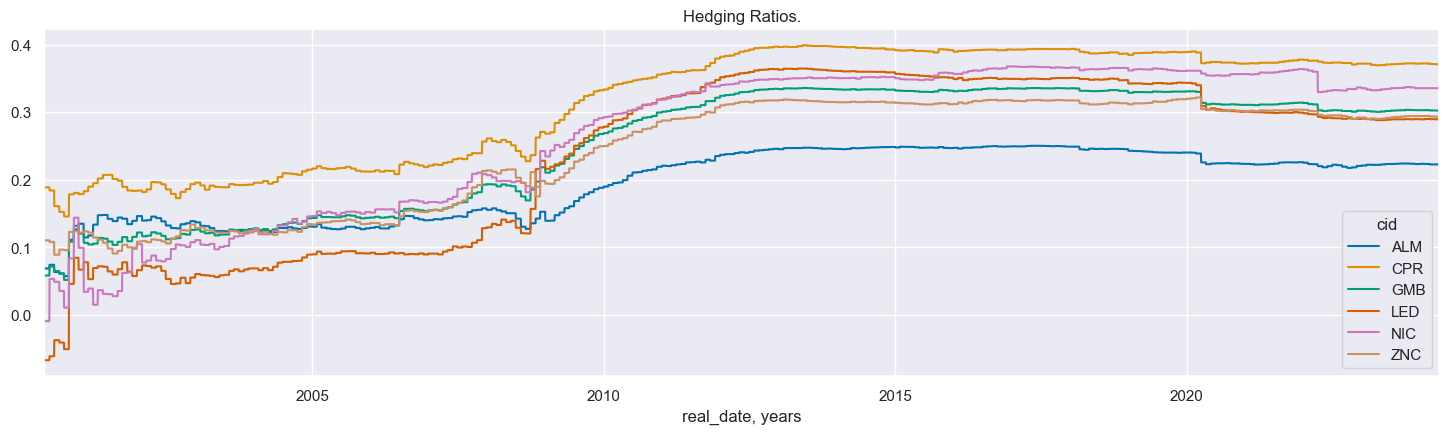

The auxiliary function
.beta_display()
visualizes the estimated elasticities.
cidx = cids_lmx
dfh = msp.return_beta(
dfx,
xcat="COXR_NSA",
cids=cidx,
benchmark_return="USD_EQXR_NSA",
oos=True,
min_obs=90,
max_obs=504,
hedged_returns=True,
start="2000-01-01",
refreq="m",
hr_name="HvSP500",
)
dfx = msm.update_df(df=dfx, df_add=dfh)
msp.beta_display(dfh, hr_name="HvSP500")

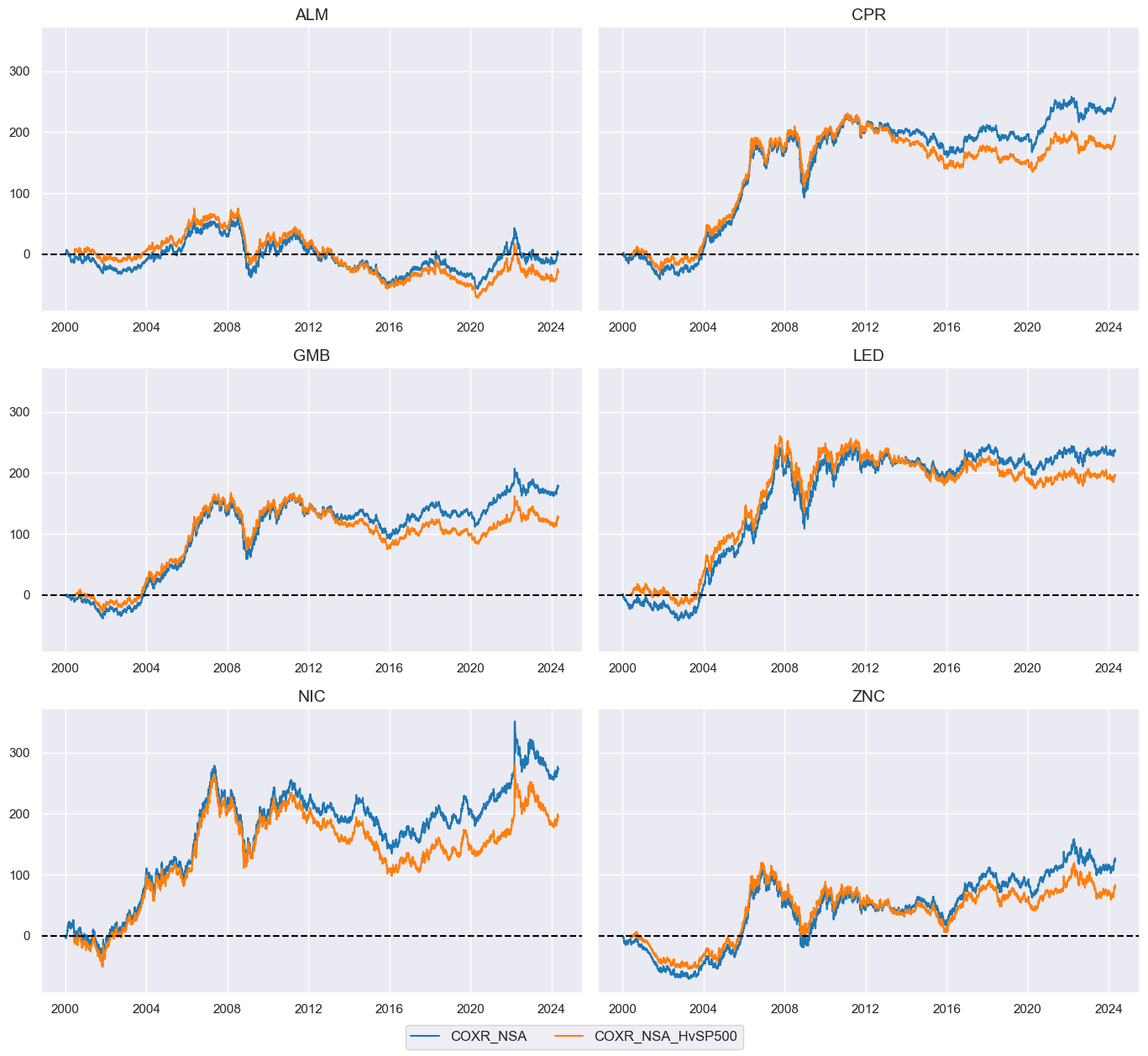

The hedged return, displayed alongside the original series, shows a very close alignment:
xcatx = ["COXR_NSA", "COXR_NSA_HvSP500"]
cidx = cids_lmx
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=2,
cumsum=True,
start="2000-01-01",
same_y=True,
all_xticks=True,
)
Value checks #
In this part of the analysis, the notebook calculates the naive PnLs (Profit and Loss) for metal future returns using composite inventory and manufacturing inventory assessment scores indicators. The PnLs are calculated based on simple trading strategies that utilize the indicators as signals (no regression is involved). The strategies involve going long (buying) or short (selling) on returns based purely on the direction of the score signals.
To evaluate the performance of these strategies, the notebook computes various metrics and ratios, including:
-
Correlation: Measures the relationship between indicator changes and consequent financial returns. Positive correlations indicate that the strategy moves in the same direction as the market, while negative correlations indicate an opposite movement.
-
Accuracy Metrics: These metrics assess the accuracy of the confidence score-based strategies in predicting market movements. Standard accuracy metrics include accuracy rate, balanced accuracy, precision, etc.
-
Performance Ratios: Various performance ratios, such as Sharpe ratio, Sortino ratio, Max draws, etc.
The notebook examines two distinct types of strategies:
-
Directional basket strategy : This strategy operates under the hypothesis that high or increasing finished goods inventories in the industrial sector negatively predict subsequent returns on base metals futures. The approach assumes a broad market impact and applies to aggregated metal contracts.
-
Directional contract strategy : This strategy builds on the premise that commodity-specific excess inventory scores enhance the value derived from manufacturing inventory scores. It provides contract-specific signals that influence not only the direction and size of exposure to metals but also the allocation among individual contracts, tailoring the strategy to specific market dynamics.
It’s important to note that the analysis deliberately disregards transaction costs and risk management considerations. This is done to provide a more straightforward comparison of the strategies’ raw performance without the additional complexity introduced by transaction costs and risk management, which can vary based on trading size, institutional rules, and regulations.
Directional basket strategy #
Specs #
itrans = ["3MMA", "D3M3ML3", "D6M6ML6", "3MMA_D1M1ML12"]
scores = [f"MBISCORE_SA_{itran}_ZN" for itran in itrans]
ms = 'MBISCORE_SA_CZS'
oths = scores
targ = "COXR_NSA" # COXR_NSA_HvSP500 (almost same results)
cidx = ["GMB"]
start = "2000-01-01"
dict_dbs = {
"sig": ms,
"rivs": oths,
"targ": targ,
"cidx": cidx,
"start": start,
"srr": None,
"pnls": None,
}
CategoryRelations()
function is used for quick visualization and analysis of two categories, in particular,
-
Composite manufacturing inventory assessment score
MBISCORE_SA_CZS
, derived earlier, and -
subsequent base metal returns [
COXR_NSA
]
for an equally weighted base metals futures basket.
The
.reg_scatter()
within this function facilitates the visualization of the relationship between these two categories. It provides a linear regression line accompanied by a 95% confidence interval, aiding in understanding the strength of the association and identifying any outliers. This method is particularly useful for quantifying the linear dependencies and evaluating the potential impact of inventory levels on metal returns. The argument
lag
sets the lag (delay of arrival) of the first (feature) category in base periods (monthly in our example). This means, that the feature is related to subsequent targets and - thus - allows analyzing its predictive power.
dix = dict_dbs
sig = dix["sig"]
targ = dix["targ"]
cidx = dix["cidx"]
start = dix["start"]
crx = msp.CategoryRelations(
dfx,
xcats=[sig, targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
)
crx.reg_scatter(
labels=False,
coef_box="upper right",

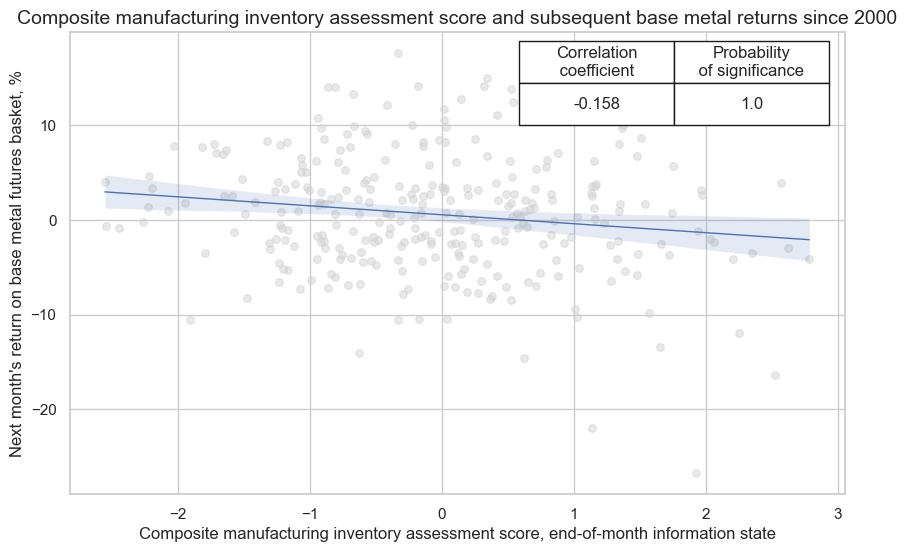

title="Composite manufacturing inventory assessment score and subsequent base metal returns since 2000",
xlab="Composite manufacturing inventory assessment score, end-of-month information state",
ylab="Next month's return on base metal futures basket, %",
prob_est="map",
size=(10, 6),
)
Accuracy and correlation check #
The
SignalReturnRelations
class from the macrosynergy.signal module is designed to analyze, visualize, and compare the relationships between panels of trading signals and panels of subsequent returns.
dix = dict_dbs
sig = dix["sig"]
rivs = dix["rivs"]
targ = dix["targ"]
cidx = dix["cidx"]
start = dix["start"]
freqs = ["M", "Q"]
srr = mss.SignalReturnRelations(
dfx,
cids=cidx,
sigs=[sig] + rivs,
sig_neg=[True] * (len(rivs) + 1),
rets=targ,
freqs=freqs,
start=start,
)
dix["srr"] = srr
multiple_relations_table()
method compares multiple signal-return relations in one table. It compares the performance of different signals against the same return series (more than one possible financial return) and multiple possible frequencies (monthly and quarterly as defined in
freqs
list). The method returns a table with standard columns and the rows display different signals from the list of signals specified upon SignalReturnsRelations () sigs. The row names indicate the frequency (‘D,’ ‘W,’ ‘M,’ ‘Q,’ ‘A’) followed by the signal’s and return’s names.
dix = dict_dbs
srrx = dix["srr"]
selcols = [
"accuracy",
"bal_accuracy",
"pos_sigr",
"pos_retr",
"pearson",
"pearson_pval",
"kendall",
"kendall_pval",
]
tbx = srrx.multiple_relations_table(freqs=freqs)[selcols].reset_index(level=['Return', 'Aggregation'], drop=True)
display(tbx.sort_index().astype("float").round(3))
accuracy | bal_accuracy | pos_sigr | pos_retr | pearson | pearson_pval | kendall | kendall_pval | ||
---|---|---|---|---|---|---|---|---|---|
Signal | Frequency | ||||||||
MBISCORE_SA_3MMA_D1M1ML12_ZN_NEG | M | 0.572 | 0.569 | 0.558 | 0.534 | 0.135 | 0.021 | 0.079 | 0.045 |
Q | 0.598 | 0.584 | 0.598 | 0.588 | 0.145 | 0.156 | 0.106 | 0.124 | |
MBISCORE_SA_3MMA_ZN_NEG | M | 0.503 | 0.498 | 0.572 | 0.534 | 0.089 | 0.128 | 0.054 | 0.168 |
Q | 0.608 | 0.598 | 0.567 | 0.588 | 0.090 | 0.378 | 0.070 | 0.307 | |
MBISCORE_SA_CZS_NEG | M | 0.524 | 0.522 | 0.524 | 0.534 | 0.158 | 0.007 | 0.081 | 0.038 |
Q | 0.567 | 0.559 | 0.546 | 0.588 | 0.205 | 0.044 | 0.126 | 0.067 | |
MBISCORE_SA_D3M3ML3_ZN_NEG | M | 0.521 | 0.521 | 0.493 | 0.534 | 0.142 | 0.015 | 0.080 | 0.043 |
Q | 0.546 | 0.549 | 0.485 | 0.588 | 0.223 | 0.028 | 0.134 | 0.052 | |
MBISCORE_SA_D6M6ML6_ZN_NEG | M | 0.531 | 0.529 | 0.524 | 0.534 | 0.144 | 0.014 | 0.080 | 0.042 |
Q | 0.588 | 0.583 | 0.526 | 0.588 | 0.208 | 0.041 | 0.133 | 0.054 |
PnLs #
NaivePnl()
class is designed to provide a quick and simple overview of a stylized PnL profile of a set of trading signals. The class carries the label naive because its methods do not consider transaction costs or position limitations, such as risk management considerations. This is deliberate because costs and limitations are specific to trading size, institutional rules, and regulations.
Important options within NaivePnl() function include:
-
zn_score_pan
option, which transforms raw signals into z-scores around zero value based on the whole panel. The neutral level & standard deviation will use the cross-section of panels. zn-score here means standardized score with zero being the neutral level and standardization through division by mean absolute value. -
rebalancing frequency (
rebal_freq
) for positions according to signal is chosen monthly, -
rebalancing slippage (
rebal_slip
) in days is 1, which means that it takes one day to rebalance the position and that the new position produces PnL from the second day after the signal has been recorded, -
threshold value (
thresh
) beyond which scores are winsorized, i.e., contained at that threshold. This is often realistic, as risk management and the potential of signal value distortions typically preclude outsized and concentrated positions within a strategy. We apply a threshold of 3 -
sig_add
- In this example, we create two PnLs: one neutral and one long-biased. For long-biased strategy we add one standard deviation to the normalized signals of the naïve PnL generator. This allows to give PnLs a long bias relative to the signal score.
The method also allows ex-post scaling of PnL to an annualized volatility by assigning an annualized standard deviation of the aggregate PnL to the
vol_scale
argument. This is for comparative visualization only and very different from apriori volatility targeting.
We also generate a long-only Profit and Loss (PnL) statement and label it as “Long Only.”
dix = dict_dbs
sigx = [dix["sig"]] + dix["rivs"]
targ = dix["targ"]
cidx = dix["cidx"]
start = dix["start"]
naive_pnl = msn.NaivePnL(
dfx,
ret=targ,
sigs=sigx,
cids=cidx,
start=start,
bms=["GLB_DRBXR_NSA", "GEQ_DRBXR_NSA"],
)
sig_adds = [0, 1]
for sa in sig_adds:
for sig in sigx:
naive_pnl.make_pnl(
sig,
sig_neg=True,
sig_add=sa,
sig_op="zn_score_pan",
thresh=3,
rebal_freq="monthly",
vol_scale=10,
rebal_slip=1,
pnl_name=sig + "_PZN"+ str(sa),
)
naive_pnl.make_long_pnl(vol_scale=10, label="Long only")
dix["pnls"] = naive_pnl

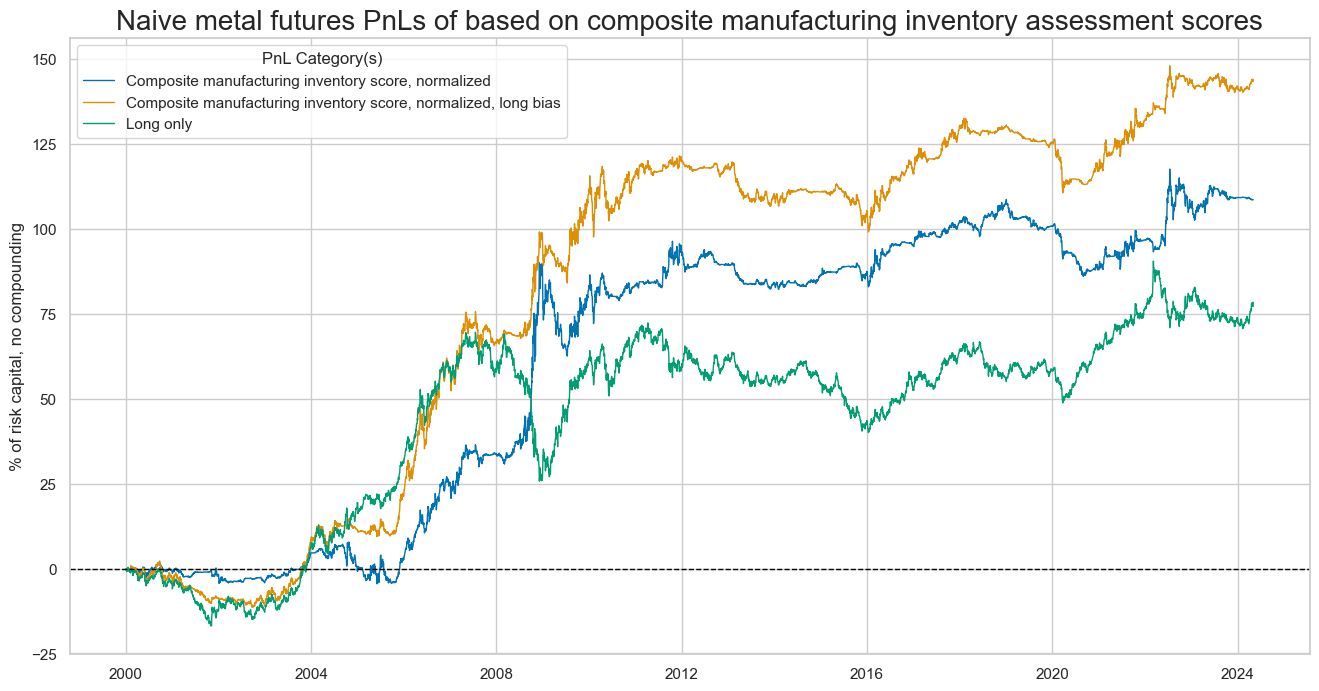

The
plot_pnls()
method of the
NaivePnl()
class plots a line chart of cumulative PnL based on the composite manufacturing inventory score (long bias, market neutral, and long only):
dix = dict_dbs
start = dix["start"]
cidx = dix["cidx"]
sigx = [dix["sig"]]
naive_pnl = dix["pnls"]
pnls = [s + "_" + type for s in sigx for type in ["PZN0", "PZN1"]] + ["Long only"]
dict_labels = {"MBISCORE_SA_CZS_PZN0": "Composite manufacturing inventory score, normalized",
"MBISCORE_SA_CZS_PZN1": "Composite manufacturing inventory score, normalized, long bias",
"Long only": "Long only"}
naive_pnl.plot_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
title="Naive metal futures PnLs of based on composite manufacturing inventory assessment scores",
xcat_labels=dict_labels,
figsize=(16, 8),
)
We employ
plot_pnls()
method of the
NaivePnl()

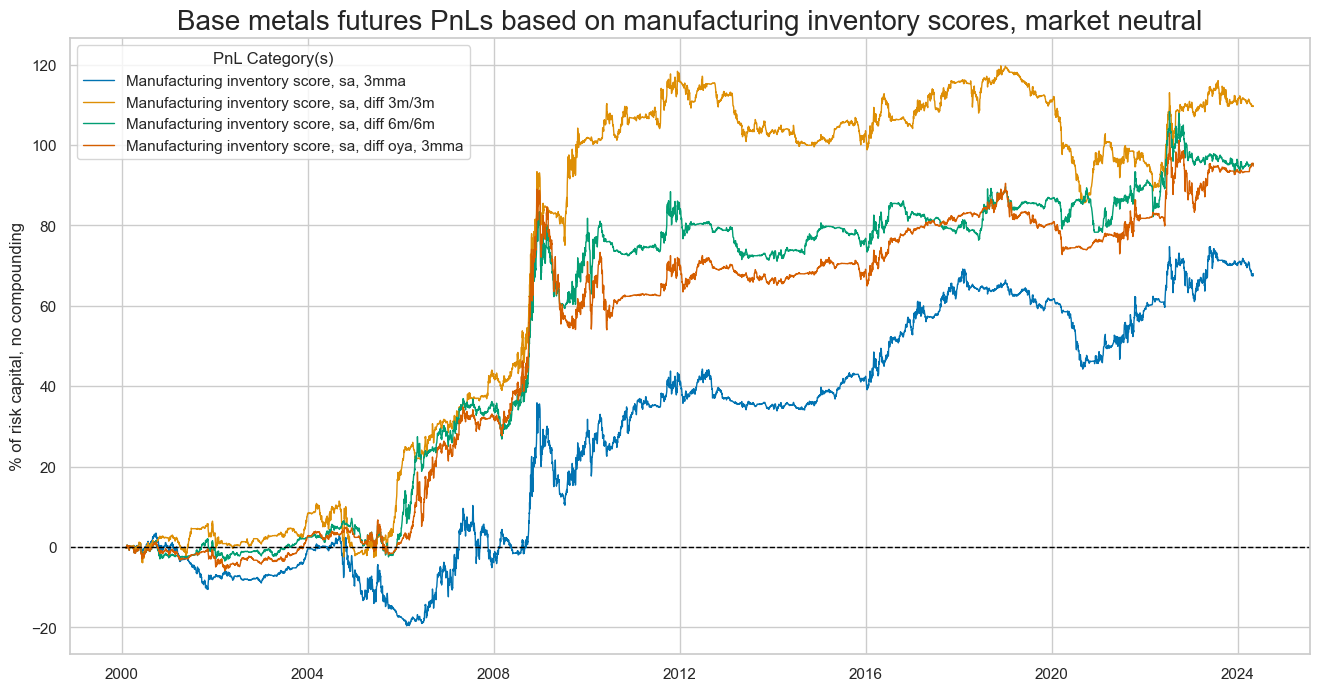

class plots to compare cumulative PnLs based on Manufacturing inventory scores, market neutral. i.e. no long bias, as well as on its differences:
dix = dict_dbs
start = dix["start"]
cidx = dix["cidx"]
sigx = dix["rivs"]
naive_pnl = dix["pnls"]
type = "PZN0"
pnls = [s + "_" + type for s in sigx]
dict_labels = {
f"MBISCORE_SA_3MMA_ZN_{type}": "Manufacturing inventory score, sa, 3mma",
f"MBISCORE_SA_D3M3ML3_ZN_{type}": "Manufacturing inventory score, sa, diff 3m/3m",
f"MBISCORE_SA_D6M6ML6_ZN_{type}": "Manufacturing inventory score, sa, diff 6m/6m",
f"MBISCORE_SA_3MMA_D1M1ML12_ZN_{type}": "Manufacturing inventory score, sa, diff oya, 3mma",
}
naive_pnl.plot_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
title="Base metals futures PnLs based on manufacturing inventory scores, market neutral",
xcat_labels=dict_labels,
figsize=(16, 8),
)
The
evaluate_pnls()
method displays standard performance metrics of market neutral naive PnLs for the directional basket strategy.
dix = dict_dbs
start = dix["start"]
sigx = [dix["sig"]] + dix["rivs"]
naive_pnl = dix["pnls"]
pnls = [s + type for s in sigx for type in ["_PZN0"]] + ["Long only"]
df_eval = naive_pnl.evaluate_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
)
display(df_eval.transpose())
Return (pct ar) | St. Dev. (pct ar) | Sharpe Ratio | Sortino Ratio | Max 21-day draw | Max 6-month draw | GLB_DRBXR_NSA correl | GEQ_DRBXR_NSA correl | Traded Months | |
---|---|---|---|---|---|---|---|---|---|
xcat | |||||||||
Long only | 3.172034 | 10.0 | 0.317203 | 0.453594 | -19.368699 | -30.646771 | 0.377323 | 0.340319 | 293 |
MBISCORE_SA_3MMA_D1M1ML12_ZN_PZN0 | 3.908374 | 10.0 | 0.390837 | 0.561425 | -14.886436 | -32.154733 | -0.034936 | -0.028081 | 293 |
MBISCORE_SA_3MMA_ZN_PZN0 | 2.805485 | 10.0 | 0.280548 | 0.40688 | -13.066985 | -22.810415 | 0.019189 | 0.025867 | 293 |
MBISCORE_SA_CZS_PZN0 | 4.478651 | 10.0 | 0.447865 | 0.660832 | -13.672976 | -24.500606 | -0.027525 | -0.023028 | 293 |
MBISCORE_SA_D3M3ML3_ZN_PZN0 | 4.525329 | 10.0 | 0.452533 | 0.673096 | -13.123991 | -20.685053 | -0.045749 | -0.043007 | 293 |
MBISCORE_SA_D6M6ML6_ZN_PZN0 | 3.934624 | 10.0 | 0.393462 | 0.574414 | -16.67494 | -23.249454 | -0.028029 | -0.027257 | 293 |

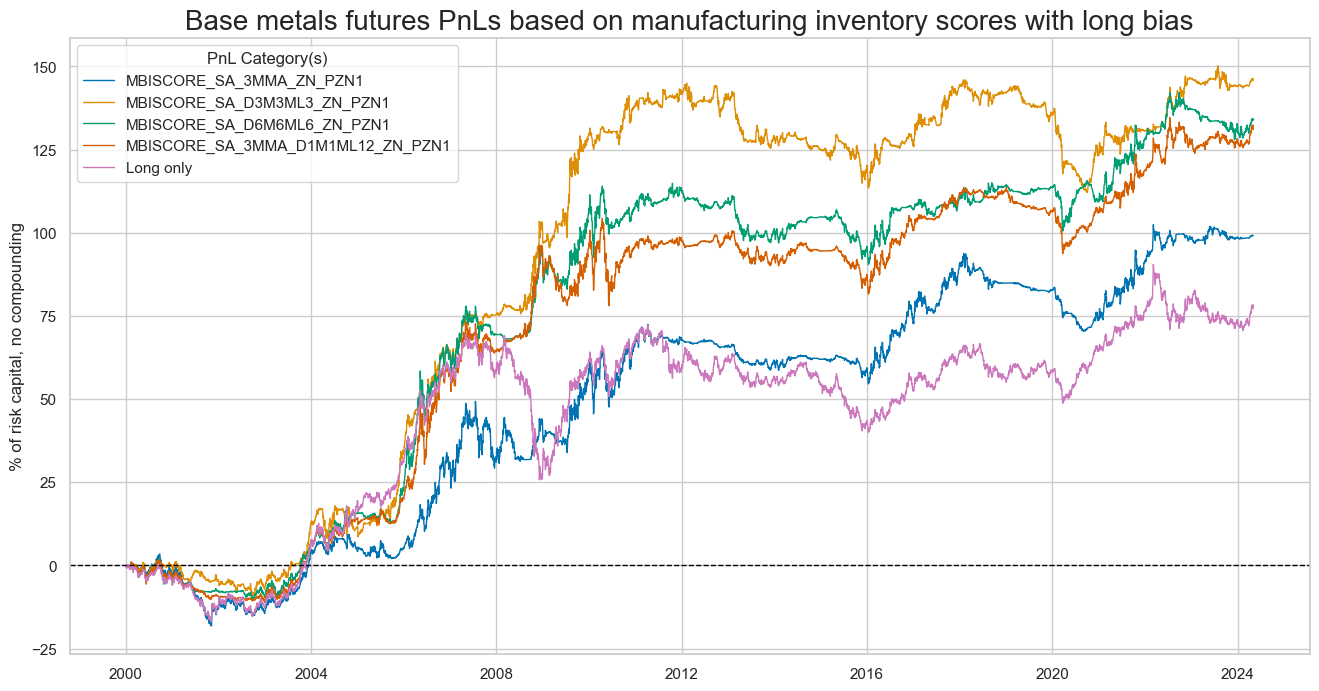

The same analysis is conducted using the
plot_pnls()
method from the
NaivePnl()
class to visualize cumulative Profit and Loss (PnL) outcomes with a focus on strategies based on Manufacturing inventory score and its differences, maintaining a long bias.
dix = dict_dbs
start = dix["start"]
cidx = dix["cidx"]
sigx = dix["rivs"]
naive_pnl = dix["pnls"]
type = "PZN1"
pnls = [s + "_" + type for s in sigx] + ["Long only"]
dict_labels = {
f"MBISCORE_SA_3MMA_ZN_{type}": "Manufacturing inventory score, sa, 3mma",
f"MBISCORE_SA_D3M3ML3_ZN_{type}": "Manufacturing inventory score, sa, diff 3m/3m",
f"MBISCORE_SA_D6M6ML6_ZN_{type}": "Manufacturing inventory score, sa, diff 6m/6m",
f"MBISCORE_SA_3MMA_D1M1ML12_ZN_{type}": "Manufacturing inventory score, sa, diff oya, 3mma",
f"Long only": "Long only",
}
naive_pnl.plot_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
title="Base metals futures PnLs based on manufacturing inventory scores with long bias",
# xcat_labels=dict_labels,
figsize=(16, 8),
)
The
evaluate_pnls()
method displays standard performance metrics of long-biased naive PnLs using all created signals for the directional basket strategy.
dix = dict_dbs
start = dix["start"]
sigx = [dix["sig"]] + dix["rivs"]
naive_pnl = dix["pnls"]
pnls = [s + type for s in sigx for type in ["_PZN1"]] + ["Long only"]
df_eval = naive_pnl.evaluate_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
)
display(df_eval.transpose())
Return (pct ar) | St. Dev. (pct ar) | Sharpe Ratio | Sortino Ratio | Max 21-day draw | Max 6-month draw | GLB_DRBXR_NSA correl | GEQ_DRBXR_NSA correl | Traded Months | |
---|---|---|---|---|---|---|---|---|---|
xcat | |||||||||
Long only | 3.172034 | 10.0 | 0.317203 | 0.453594 | -19.368699 | -30.646771 | 0.377323 | 0.340319 | 293 |
MBISCORE_SA_3MMA_D1M1ML12_ZN_PZN1 | 5.402092 | 10.0 | 0.540209 | 0.777716 | -17.640554 | -18.438815 | 0.188417 | 0.174209 | 293 |
MBISCORE_SA_3MMA_ZN_PZN1 | 4.086074 | 10.0 | 0.408607 | 0.592763 | -15.565183 | -14.632033 | 0.23672 | 0.22134 | 293 |
MBISCORE_SA_CZS_PZN1 | 5.914361 | 10.0 | 0.591436 | 0.866772 | -15.915868 | -15.059066 | 0.19147 | 0.175714 | 293 |
MBISCORE_SA_D3M3ML3_ZN_PZN1 | 6.012577 | 10.0 | 0.601258 | 0.887017 | -12.160198 | -20.074591 | 0.183276 | 0.164931 | 293 |
MBISCORE_SA_D6M6ML6_ZN_PZN1 | 5.520195 | 10.0 | 0.552019 | 0.806195 | -16.615089 | -13.376498 | 0.197245 | 0.176796 | 293 |
Directional contract strategy #
Specs #
The hypothesis tested in this part of the notebook explores the idea that commodity-specific excess inventory scores can significantly augment the value derived from manufacturing inventory scores. It suggests that these specialized scores provide tailored, contract-specific signals which influence not only the strategic direction and magnitude of exposure to metals but also refine the decision-making process regarding the allocation to specific contracts. This approach allows for more precise and effective management of investments in the metals sector.
itrans = ["3MMA", "D3M3ML3", "D6M6ML6", "3MMA_D1M1ML12"]
scores1 = [f"XINVSCORELME_SA_{itran}_ZN" for itran in itrans]
scores2 = [f"ISCORE_SA_{itran}_CZS" for itran in itrans]
ms = "ISCORE_SA_CZS"
oths = ["XINVSCORELME_SA_CZS"] + scores1 + scores2
targ = "COXR_VT10"
cidx = cids_lme
start = "2000-01-01"
dict_dcs = {
"sig": ms,
"rivs": oths,
"targ": targ,
"cidx": cidx,
"start": start,
"srr": None,
"pnls": None,
}
Instances of the class
CategoryRelations
of the
macrosynnergy.panel
package collect panels of features and targets in the appropriate form for analysis, including options for frequency conversion, lagging, and outlier trimming. The
reg_scatter
method of the class displays a correlation scatter of the pooled data or a section thereof. Panel analysis shows that in line with the basic hypothesis there has been a negative relation between composite inventory scores and subsequent returns. The significance is very high, using the
Macrosynergy panel test
.
dix = dict_dcs
sig = dix["sig"]
targ = dix["targ"]
cidx = dix["cidx"]
start = dix["start"]
crx = msp.CategoryRelations(
dfx,
xcats=[sig, targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
)
crxx = msp.CategoryRelations(
dfx,
xcats=["XINVSCORELME_SA_D3M3ML3_ZN", targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
)
crxxx = msp.CategoryRelations(
dfx,
xcats=["XINVSCORELME_SA_CZS", targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
)

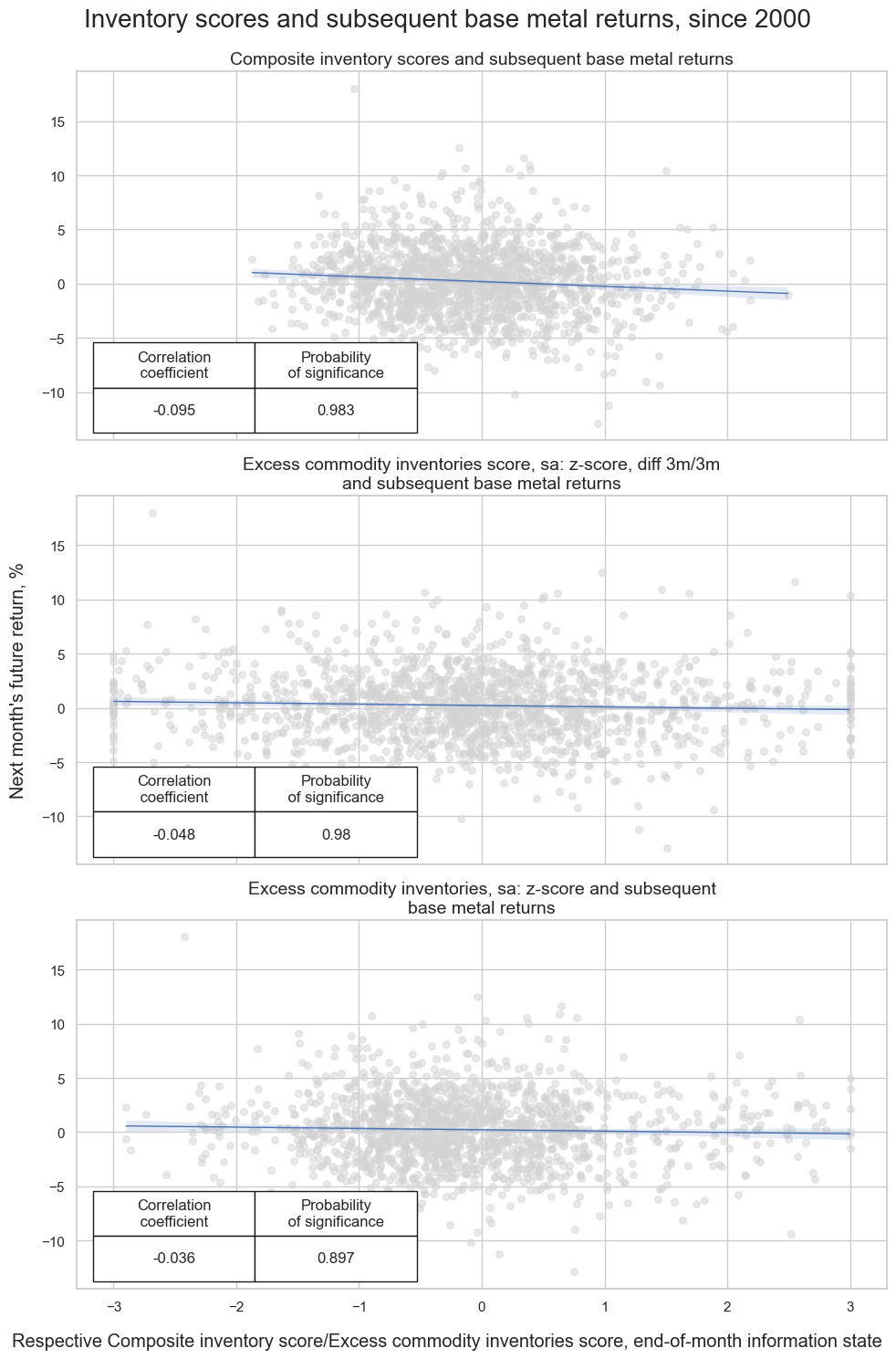

msv.multiple_reg_scatter(
[crx, crxx, crxxx],
title="Inventory scores and subsequent base metal returns, since 2000",
xlab="Respective Composite inventory score/Excess commodity inventories score, end-of-month information state",
ylab="Next month's future return, %",
ncol=1,
nrow=3,
figsize=(10, 15),
prob_est="map",
coef_box="lower left",
subplot_titles=["Composite inventory scores and subsequent base metal returns",
"Excess commodity inventories score, sa: z-score, diff 3m/3m and subsequent base metal returns",
"Excess commodity inventories, sa: z-score and subsequent base metal returns"],
)
dix = dict_dcs
sig = dix["sig"]
targ = dix["targ"]
cidx = dix["cidx"]
start = dix["start"]
crx = msp.CategoryRelations(
dfx,
xcats=[sig, targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
)

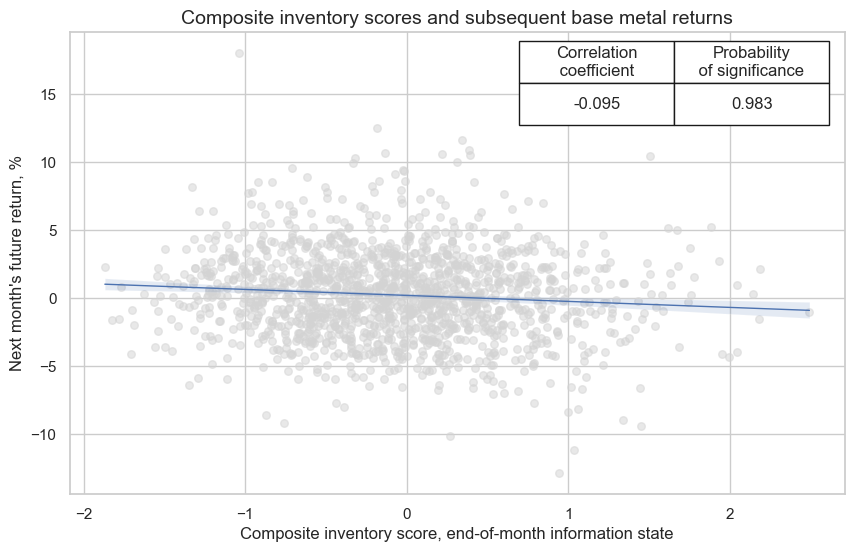

crx.reg_scatter(
labels=False,
coef_box="upper right",
title="Composite inventory scores and subsequent base metal returns",
xlab="Composite inventory score, end-of-month information state",
ylab="Next month's future return, %",
prob_est="map",
size=(10, 6),
)
Accuracy and correlation checks #
As before,
SignalReturnRelations
class from the macrosynergy.signal module is designed to analyze, visualize, and compare the relationships between panels of trading signals and panels of subsequent returns.
dix = dict_dcs
sig = dix["sig"]
rivs = dix["rivs"]
targ = dix["targ"]
cidx = dix["cidx"]
start = dix["start"]
freqs = ["M"]
srr = mss.SignalReturnRelations(
dfx,
cids=cidx,
sigs=[sig] + rivs,
sig_neg=[True] * (len(rivs) + 1),
rets=targ,
freqs=freqs,
start=start,
)
dix["srr"] = srr
multiple_relations_table()
compares multiple signal-return relations in one table. It is useful to compare the performance of different signals against the same return series (more than one possible financial return) and multiple possible frequencies.
dix = dict_dcs
srrx = dix["srr"]
selcols = [
"accuracy",
"bal_accuracy",
"pos_sigr",
"pos_retr",
"pearson",
"pearson_pval",
"kendall",
"kendall_pval",
]
tbx = srrx.multiple_relations_table(freqs=freqs)[selcols].reset_index(level=['Return', 'Aggregation'], drop=True)
display(tbx.sort_index().astype("float").round(3))
accuracy | bal_accuracy | pos_sigr | pos_retr | pearson | pearson_pval | kendall | kendall_pval | ||
---|---|---|---|---|---|---|---|---|---|
Signal | Frequency | ||||||||
ISCORE_SA_3MMA_CZS_NEG | M | 0.507 | 0.502 | 0.610 | 0.522 | 0.053 | 0.042 | 0.025 | 0.145 |
ISCORE_SA_3MMA_D1M1ML12_CZS_NEG | M | 0.523 | 0.521 | 0.563 | 0.522 | 0.076 | 0.004 | 0.039 | 0.025 |
ISCORE_SA_CZS_NEG | M | 0.530 | 0.528 | 0.560 | 0.522 | 0.095 | 0.000 | 0.056 | 0.001 |
ISCORE_SA_D3M3ML3_CZS_NEG | M | 0.529 | 0.529 | 0.503 | 0.522 | 0.089 | 0.001 | 0.060 | 0.001 |
ISCORE_SA_D6M6ML6_CZS_NEG | M | 0.535 | 0.534 | 0.526 | 0.521 | 0.075 | 0.004 | 0.046 | 0.008 |
XINVSCORELME_SA_3MMA_D1M1ML12_ZN_NEG | M | 0.486 | 0.485 | 0.525 | 0.522 | 0.012 | 0.642 | -0.006 | 0.721 |
XINVSCORELME_SA_3MMA_ZN_NEG | M | 0.496 | 0.488 | 0.658 | 0.522 | 0.029 | 0.260 | 0.007 | 0.671 |
XINVSCORELME_SA_CZS_NEG | M | 0.510 | 0.506 | 0.605 | 0.522 | 0.036 | 0.168 | 0.018 | 0.291 |
XINVSCORELME_SA_D3M3ML3_ZN_NEG | M | 0.513 | 0.512 | 0.534 | 0.522 | 0.048 | 0.066 | 0.032 | 0.069 |
XINVSCORELME_SA_D6M6ML6_ZN_NEG | M | 0.513 | 0.512 | 0.534 | 0.522 | 0.017 | 0.509 | 0.005 | 0.779 |
To streamline the focus on a particular signal, the
.single_relation_table()
method is employed. This method arranges the data effectively, starting with the first column, which specifies the frequency of data aggregation (‘D’ for daily, ‘W’ for weekly, ‘M’ for monthly, ‘Q’ for quarterly, ‘A’ for annually). This is followed by the name of the signal, which includes the suffix _NEG if there is a negative relationship and the name of the corresponding return. The table subsequently details the breakdown of the main signal by individual contract, offering a clear and organized view that facilitates in-depth analysis of how each contract contributes to the main signal. The table below focuses on composite inventory scores
ISCORE_SA_CZS
.
dix = dict_dcs
srrx = dix["srr"]
tbx = srrx.single_relation_table(
ret="COXR_VT10", xcat="ISCORE_SA_CZS", freq="M", table_type="cross_section"
)[selcols]
display(tbx.astype("float").round(3))
accuracy | bal_accuracy | pos_sigr | pos_retr | pearson | pearson_pval | kendall | kendall_pval | |
---|---|---|---|---|---|---|---|---|
M: ISCORE_SA_CZS_NEG/last => COXR_VT10 | 0.530 | 0.528 | 0.560 | 0.522 | 0.095 | 0.000 | 0.056 | 0.001 |
Mean | 0.530 | 0.528 | 0.560 | 0.522 | 0.098 | 0.171 | 0.055 | 0.265 |
PosRatio | 0.800 | 0.800 | 1.000 | 0.800 | 1.000 | 1.000 | 1.000 | 0.800 |
ALM | 0.524 | 0.528 | 0.572 | 0.473 | 0.139 | 0.018 | 0.087 | 0.027 |
CPR | 0.538 | 0.528 | 0.599 | 0.555 | 0.040 | 0.496 | 0.016 | 0.681 |
LED | 0.558 | 0.552 | 0.572 | 0.548 | 0.142 | 0.015 | 0.084 | 0.032 |
NIC | 0.490 | 0.489 | 0.521 | 0.524 | 0.068 | 0.247 | 0.032 | 0.412 |
ZNC | 0.541 | 0.541 | 0.538 | 0.510 | 0.103 | 0.078 | 0.054 | 0.172 |
.single_relation_table()
method is used here to analyze
XINVSCORELME_SA_CZS
, composite excess commodity inventories related to the London Metal Exchange
dix = dict_dcs
srrx = dix["srr"]
tbx = srrx.single_relation_table(
ret="COXR_VT10", xcat="XINVSCORELME_SA_CZS", freq="M", table_type="cross_section"
)[selcols]
display(tbx.astype("float").round(3))
accuracy | bal_accuracy | pos_sigr | pos_retr | pearson | pearson_pval | kendall | kendall_pval | |
---|---|---|---|---|---|---|---|---|
M: XINVSCORELME_SA_CZS_NEG/last => COXR_VT10 | 0.510 | 0.506 | 0.605 | 0.522 | 0.036 | 0.168 | 0.018 | 0.291 |
Mean | 0.510 | 0.505 | 0.605 | 0.522 | 0.041 | 0.545 | 0.019 | 0.535 |
PosRatio | 0.400 | 0.400 | 1.000 | 0.800 | 0.800 | 0.400 | 0.800 | 0.400 |
ALM | 0.479 | 0.484 | 0.589 | 0.473 | 0.037 | 0.533 | 0.048 | 0.222 |
CPR | 0.548 | 0.536 | 0.630 | 0.555 | -0.002 | 0.967 | 0.002 | 0.961 |
LED | 0.565 | 0.556 | 0.647 | 0.548 | 0.105 | 0.074 | 0.058 | 0.141 |
NIC | 0.473 | 0.467 | 0.592 | 0.524 | 0.018 | 0.763 | -0.024 | 0.539 |
ZNC | 0.486 | 0.485 | 0.565 | 0.510 | 0.051 | 0.388 | 0.009 | 0.813 |
PnLs #
To assess the effectiveness of trading signals, we again implement a naive Profit and Loss (PnL) approach. Based on this, a long-short portfolio is constructed—going long when the signal is positive and short when negative, with monthly rebalancing to adjust to new data. We evaluate this naive PnL using metrics like accuracy, balanced accuracy, positive signal and return rates, and both Pearson and Kendall correlations.
Additionally, two PnL variants are considered: a neutral strategy that adheres strictly to the signal, and a long-biased strategy which adds one standard deviation to the normalized signals to favor long positions. This method allows us to test the signal’s predictive power and profitability under different trading biases.
dix = dict_dcs
sigx = [dix["sig"]] + dix["rivs"]
targ = dix["targ"]
cidx = dix["cidx"]
start = dix["start"]
naive_pnl = msn.NaivePnL(
dfx,
ret=targ,
sigs=sigx,
cids=cidx,
start=start,
bms=["GLB_DRBXR_NSA", "GEQ_DRBXR_NSA"],
)
sig_adds = [0, 1]
for sa in sig_adds:
for sig in sigx:
naive_pnl.make_pnl(
sig,
sig_neg=True,
sig_add=sa,
sig_op="zn_score_pan",
thresh=3,
rebal_freq="monthly",
vol_scale=10,
rebal_slip=1,
pnl_name=sig + "_PZN"+ str(sa),
)
naive_pnl.make_long_pnl(vol_scale=10, label="Long only")
dix["pnls"] = naive_pnl
dix = dict_dcs
start = dix["start"]
cidx = dix["cidx"]
sigx = [dix["sig"]]
naive_pnl = dix["pnls"]
pnls = [s + type for s in sigx for type in ["_PZN0", "_PZN1"]] + ["Long only"]
dict_labels = {"ISCORE_SA_CZS_PZN0": "Composite inventory score, normalized",
"ISCORE_SA_CZS_PZN1": "Composite inventory score, normalized, long bias",
"Long only": "Long only"}

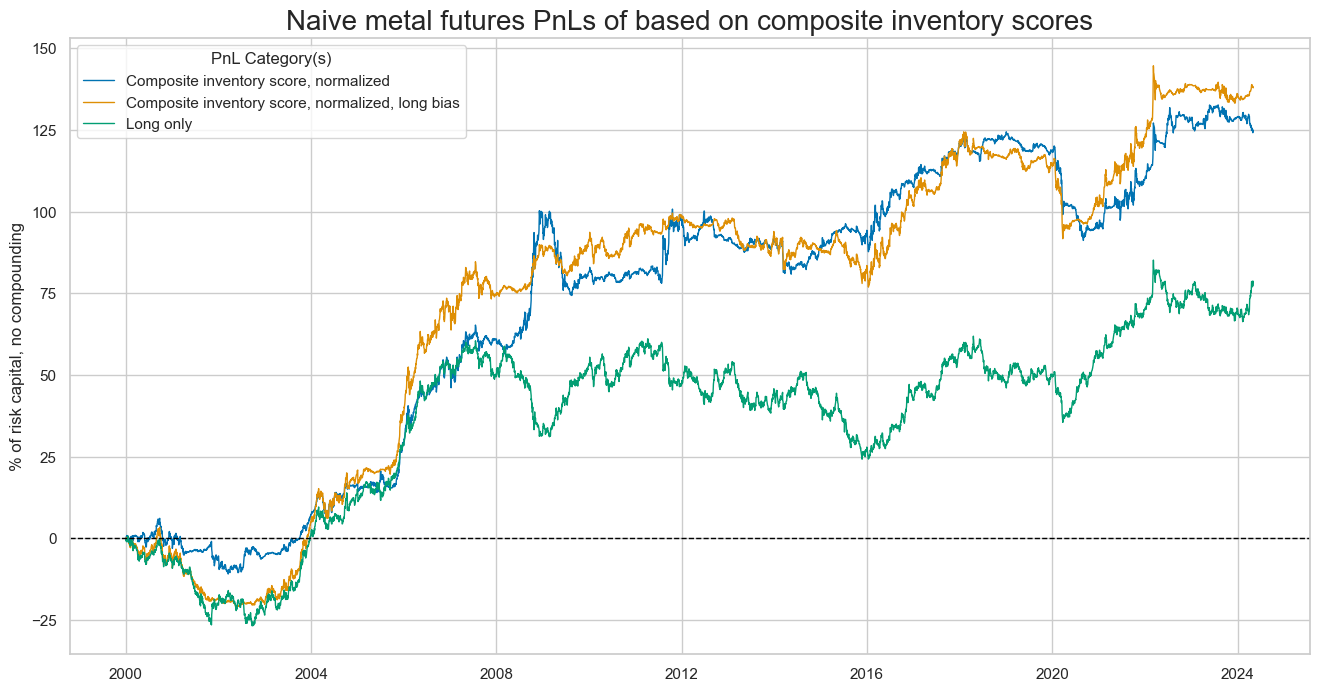

naive_pnl.plot_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
title="Naive metal futures PnLs of based on composite inventory scores",
xcat_labels=dict_labels,
figsize=(16, 8),
)
sigx = [riv for riv in dix['rivs'] if riv.startswith('ISCORE')]
[s + "_PZN0" for s in sigx]
['ISCORE_SA_3MMA_CZS_PZN0',
'ISCORE_SA_D3M3ML3_CZS_PZN0',
'ISCORE_SA_D6M6ML6_CZS_PZN0',
'ISCORE_SA_3MMA_D1M1ML12_CZS_PZN0']
We employ
plot_pnls()
method of the
NaivePnl()
class plots to compare cumulative PnLs based on Inventory score, market neutral. i.e. no long bias, as well as on its differences:
dix = dict_dcs
start = dix["start"]
cidx = dix["cidx"]
sigx = [riv for riv in dix['rivs'] if riv.startswith('ISCORE')]
naive_pnl = dix["pnls"]
type = "PZN0"
pnls = [s + "_" + type for s in sigx]
dict_labels = {
f"ISCORE_SA_3MMA_CZS_{type}": "Inventory score, sa, 3mma",
f"ISCORE_SA_D3M3ML3_CZS_{type}": "Inventory score, sa, diff 3m/3m",
f"ISCORE_SA_D6M6ML6_CZS_{type}": "Inventory score, sa, diff 3m/3m",
f"ISCORE_SA_3MMA_D1M1ML12_CZS_{type}": "Inventory score, sa, diff oya, 3mma",
}

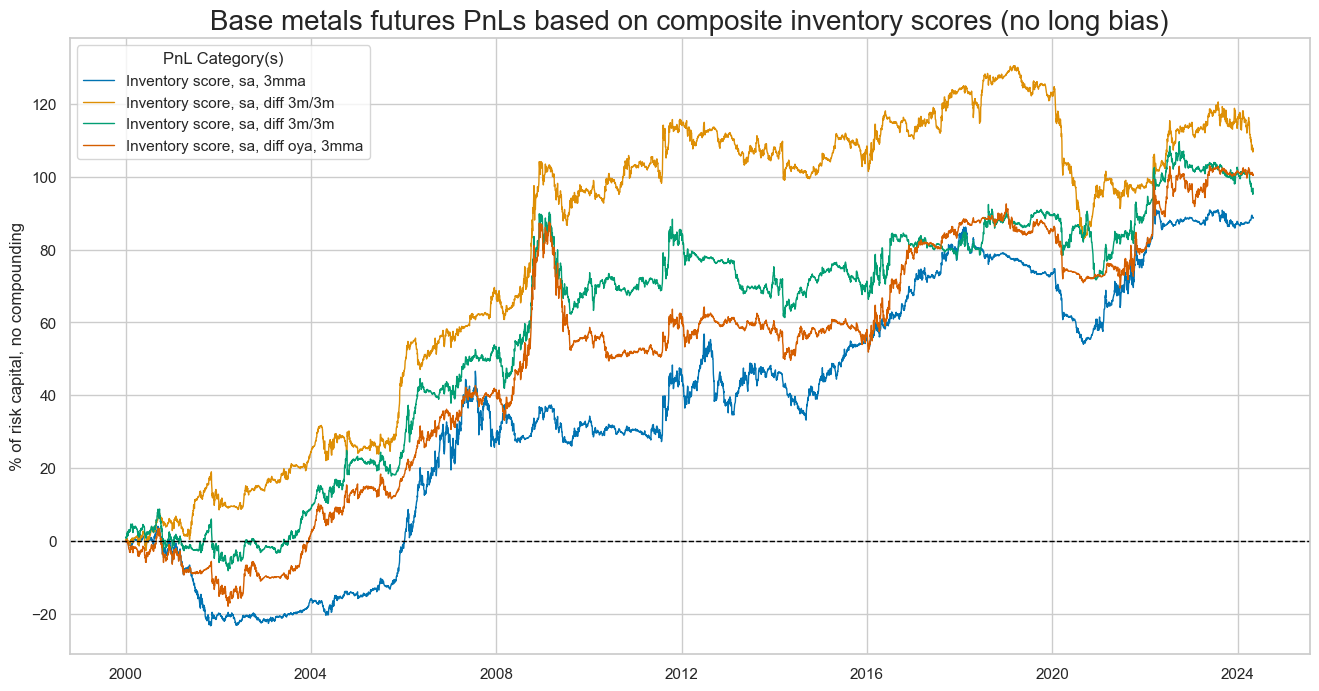

naive_pnl.plot_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
title="Base metals futures PnLs based on composite inventory scores (no long bias)",
xcat_labels=dict_labels,
figsize=(16, 8),
)
The
evaluate_pnls()
method displays standard performance metrics of market neutral naive PnLs for the directional contract strategy.
dix = dict_dcs
start = dix["start"]
sigx = [dix["sig"]] + dix["rivs"]
naive_pnl = dix["pnls"]
pnls = [s + "_PZN0" for s in sigx] + ["Long only"]
df_eval = naive_pnl.evaluate_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
)
display(df_eval.transpose())
Return (pct ar) | St. Dev. (pct ar) | Sharpe Ratio | Sortino Ratio | Max 21-day draw | Max 6-month draw | GLB_DRBXR_NSA correl | GEQ_DRBXR_NSA correl | Traded Months | |
---|---|---|---|---|---|---|---|---|---|
xcat | |||||||||
ISCORE_SA_3MMA_CZS_PZN0 | 3.64371 | 10.0 | 0.364371 | 0.520187 | -16.558888 | -19.928157 | 0.020302 | 0.020763 | 293 |
ISCORE_SA_3MMA_D1M1ML12_CZS_PZN0 | 4.127321 | 10.0 | 0.412732 | 0.602657 | -12.912846 | -34.442796 | -0.030746 | -0.031518 | 293 |
ISCORE_SA_CZS_PZN0 | 5.136485 | 10.0 | 0.513649 | 0.752243 | -14.200764 | -25.746911 | -0.019269 | -0.02182 | 293 |
ISCORE_SA_D3M3ML3_CZS_PZN0 | 4.434869 | 10.0 | 0.443487 | 0.643148 | -15.317954 | -32.971423 | -0.033566 | -0.03525 | 293 |
ISCORE_SA_D6M6ML6_CZS_PZN0 | 3.980731 | 10.0 | 0.398073 | 0.574123 | -12.722348 | -27.654686 | -0.021576 | -0.024963 | 293 |
Long only | 3.175902 | 10.0 | 0.31759 | 0.454225 | -12.89172 | -21.260647 | 0.37178 | 0.336576 | 293 |
XINVSCORELME_SA_3MMA_D1M1ML12_ZN_PZN0 | 1.112506 | 10.0 | 0.111251 | 0.16341 | -14.094985 | -33.119007 | -0.055667 | -0.054893 | 293 |
XINVSCORELME_SA_3MMA_ZN_PZN0 | 2.286824 | 10.0 | 0.228682 | 0.327243 | -12.700086 | -15.997663 | -0.005793 | -0.009978 | 293 |
XINVSCORELME_SA_CZS_PZN0 | 2.638175 | 10.0 | 0.263817 | 0.395398 | -11.674073 | -29.264338 | -0.039784 | -0.040065 | 293 |
XINVSCORELME_SA_D3M3ML3_ZN_PZN0 | 3.185212 | 10.0 | 0.318521 | 0.472628 | -14.235394 | -31.003139 | -0.038841 | -0.03811 | 293 |
XINVSCORELME_SA_D6M6ML6_ZN_PZN0 | 1.387788 | 10.0 | 0.138779 | 0.206453 | -15.370661 | -33.995502 | -0.052313 | -0.048813 | 293 |
The same analysis is conducted using the
plot_pnls()
method from the
NaivePnl()
class to visualize cumulative Profit and Loss (PnL) outcomes with a focus on strategies based on Inventory score and its differences, maintaining a long bias.
dix = dict_dcs
start = dix["start"]
cidx = dix["cidx"]
sigx = [riv for riv in dix['rivs'] if riv.startswith('ISCORE')]
naive_pnl = dix["pnls"]
type = "PZN1"
pnls = [s + "_" + type for s in sigx] + ["Long only"]
dict_labels = {
f"ISCORE_SA_3MMA_CZS_{type}": "Inventory score, sa, 3mma",
f"ISCORE_SA_D3M3ML3_CZS_{type}": "Inventory score, sa, diff 3m/3m",
f"ISCORE_SA_D6M6ML6_CZS_{type}": "Inventory score, sa, diff 3m/3m",
f"ISCORE_SA_3MMA_D1M1ML12_CZS_{type}": "Inventory score, sa, diff oya, 3mma",
f"Long only": "Long only",
}
naive_pnl.plot_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
title="Base metals futures PnLs based on composite inventory scores with long bias",
xcat_labels=dict_labels,
figsize=(16, 8),
)
The
evaluate_pnls()
method displays standard performance metrics of long-biased naive PnLs using all created signals for the directional contract strategy.
dix = dict_dcs
start = dix["start"]
sigx = [dix["sig"]] + dix["rivs"]
naive_pnl = dix["pnls"]
pnls = [s + "_PZN1" for s in sigx] + ["Long only"]
df_eval = naive_pnl.evaluate_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
)
display(df_eval.transpose())
Return (pct ar) | St. Dev. (pct ar) | Sharpe Ratio | Sortino Ratio | Max 21-day draw | Max 6-month draw | GLB_DRBXR_NSA correl | GEQ_DRBXR_NSA correl | Traded Months | |
---|---|---|---|---|---|---|---|---|---|
xcat | |||||||||
ISCORE_SA_3MMA_CZS_PZN1 | 4.378842 | 10.0 | 0.437884 | 0.630755 | -14.169429 | -20.544096 | 0.253243 | 0.230914 | 293 |
ISCORE_SA_3MMA_D1M1ML12_CZS_PZN1 | 4.9678 | 10.0 | 0.49678 | 0.726588 | -13.224399 | -20.982206 | 0.227473 | 0.203872 | 293 |
ISCORE_SA_CZS_PZN1 | 5.667855 | 10.0 | 0.566785 | 0.828434 | -15.79689 | -24.387931 | 0.228618 | 0.204745 | 293 |
ISCORE_SA_D3M3ML3_CZS_PZN1 | 5.533445 | 10.0 | 0.553344 | 0.804389 | -17.013652 | -27.882576 | 0.223393 | 0.199265 | 293 |
ISCORE_SA_D6M6ML6_CZS_PZN1 | 4.867836 | 10.0 | 0.486784 | 0.707427 | -13.294511 | -18.760919 | 0.235829 | 0.210125 | 293 |
Long only | 3.175902 | 10.0 | 0.31759 | 0.454225 | -12.89172 | -21.260647 | 0.37178 | 0.336576 | 293 |
XINVSCORELME_SA_3MMA_D1M1ML12_ZN_PZN1 | 2.885408 | 10.0 | 0.288541 | 0.423458 | -11.087272 | -19.361661 | 0.230835 | 0.205397 | 293 |
XINVSCORELME_SA_3MMA_ZN_PZN1 | 3.498199 | 10.0 | 0.34982 | 0.502775 | -13.887967 | -23.26314 | 0.250118 | 0.223733 | 293 |
XINVSCORELME_SA_CZS_PZN1 | 3.792235 | 10.0 | 0.379224 | 0.555532 | -11.697586 | -21.129246 | 0.238375 | 0.212678 | 293 |
XINVSCORELME_SA_D3M3ML3_ZN_PZN1 | 4.252947 | 10.0 | 0.425295 | 0.628048 | -11.602292 | -18.843979 | 0.252417 | 0.225802 | 293 |
XINVSCORELME_SA_D6M6ML6_ZN_PZN1 | 3.046476 | 10.0 | 0.304648 | 0.449479 | -10.923883 | -20.690585 | 0.239144 | 0.214641 | 293 |
