Equity trend following and macro headwinds #
This notebook offers the necessary code to replicate the research findings discussed in the Macrosynergy research post entitled “Equity trend following and macro headwinds”. Its primary objective is to inspire readers to explore and conduct additional investigations whilst also providing a foundation for testing their own unique ideas.
Get packages and JPMaQS data #
This notebook primarily relies on the standard packages available in the Python data science stack. However, there is an additional package
macrosynergy
that is required for two purposes:
-
Downloading JPMaQS data: The
macrosynergy
package facilitates the retrieval of JPMaQS data, which is used in the notebook. -
For the analysis of quantamental data and value propositions: The
macrosynergy
package provides functionality for performing quick analyses of quantamental data and exploring value propositions.
For detailed information and a comprehensive understanding of the
macrosynergy
package and its functionalities, please refer to the
“Introduction to Macrosynergy package”
notebook on the Macrosynergy Quantamental Academy or visit the following link on
Kaggle
.
# Run only if needed!
# !pip install macrosynergy --upgrade
import numpy as np
import pandas as pd
from pandas import Timestamp
import matplotlib.pyplot as plt
import seaborn as sns
import warnings
import os
from datetime import date
import macrosynergy.management as msm
import macrosynergy.panel as msp
import macrosynergy.signal as mss
import macrosynergy.pnl as msn
from macrosynergy.download import JPMaQSDownload
warnings.simplefilter("ignore")
# Equity cross-section lists
cids_g3 = ["EUR", "JPY", "USD"] # DM large curency areas
cids_dmes = ["AUD", "CAD", "CHF", "GBP", "SEK"] # Smaller DM equity countries
cids_dmeq = cids_g3 + cids_dmes # DM equity countries
cids = cids_dmeq # default for data import, at present only equity analysis
JPMaQS indicators are conveniently grouped into 6 main categories: Economic Trends, Macroeconomic balance sheets, Financial conditions, Shocks and risk measures, Stylized trading factors, and Generic returns. Each indicator has a separate page with notes, description, availability, statistical measures, and timelines for main currencies. The description of each JPMaQS category is available either under JPMorgan Markets (password protected) or the Macro Quantamental Academy . In particular, the indicators used in this notebook can be found under Labor market dynamics , Labor market tightness , Wage growth , Consumer price inflation trends , Equity index future carry , Global production shares , Intuitive growth estimates , and Equity index future returns .
# Category tickers
main = [
"EMPL_NSA_P1M1ML12_3MMA",
"EMPL_NSA_P1Q1QL4",
"WFORCE_NSA_P1Y1YL1_5YMM",
"UNEMPLRATE_NSA_3MMA_D1M1ML12",
"UNEMPLRATE_NSA_D1Q1QL4",
"UNEMPLRATE_SA_D3M3ML3",
"UNEMPLRATE_SA_D1Q1QL1",
"UNEMPLRATE_SA_3MMA",
"UNEMPLRATE_SA_3MMAv5YMM",
"UNEMPLRATE_SA_3MMAv10YMM",
"WAGES_NSA_P1M1ML12_3MMA",
"WAGES_NSA_P1Q1QL4",
"CPIH_SA_P1M1ML12",
"CPIH_SJA_P6M6ML6AR",
"CPIC_SA_P1M1ML12",
"CPIC_SJA_P6M6ML6AR",
"EQCRR_VT10",
"EQCRR_NSA",
]
xtra = [
"RGDP_SA_P1Q1QL4_20QMM",
"USDGDPWGT_SA_3YMA",
"INFTEFF_NSA",
"INFTARGET_NSA",
]
rets = [
"EQXR_NSA",
"EQXR_VT10",
]
xcats = main + rets + xtra
# Resultant tickers
tickers = [cid + "_" + xcat for cid in cids for xcat in xcats]
print(f"Maximum number of tickers is {len(tickers)}")
Maximum number of tickers is 192
client_id: str = os.getenv("DQ_CLIENT_ID")
client_secret: str = os.getenv("DQ_CLIENT_SECRET")
with JPMaQSDownload(oauth=True, client_id=client_id, client_secret=client_secret) as dq:
assert dq.check_connection()
df = dq.download(
tickers=tickers,
start_date="1990-01-01",
suppress_warning=True,
metrics=["value"],
show_progress=True,
)
assert isinstance(df, pd.DataFrame) and not df.empty
print("Last updated:", date.today())
Downloading data from JPMaQS.
Timestamp UTC: 2024-03-27 11:56:51
Connection successful!
Requesting data: 100%|██████████| 10/10 [00:02<00:00, 4.94it/s]
Downloading data: 100%|██████████| 10/10 [00:15<00:00, 1.57s/it]
Some expressions are missing from the downloaded data. Check logger output for complete list.
32 out of 192 expressions are missing. To download the catalogue of all available expressions and filter the unavailable expressions, set `get_catalogue=True` in the call to `JPMaQSDownload.download()`.
Some dates are missing from the downloaded data.
3 out of 8935 dates are missing.
Last updated: 2024-03-27
dfx = df.copy().sort_values(["cid", "xcat", "real_date"])
dfx.info()
<class 'pandas.core.frame.DataFrame'>
Index: 1192535 entries, 2319 to 1192534
Data columns (total 4 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 real_date 1192535 non-null datetime64[ns]
1 cid 1192535 non-null object
2 xcat 1192535 non-null object
3 value 1192535 non-null float64
dtypes: datetime64[ns](1), float64(1), object(2)
memory usage: 45.5+ MB
Availability and renaming #
Rename quarterly tickers to roughly equivalent monthly tickers to simplify subsequent operations.
dict_repl = {
"EMPL_NSA_P1Q1QL4": "EMPL_NSA_P1M1ML12_3MMA",
"WFORCE_NSA_P1Q1QL4_20QMM": "WFORCE_NSA_P1Y1YL1_5YMM",
"UNEMPLRATE_NSA_D1Q1QL4": "UNEMPLRATE_NSA_3MMA_D1M1ML12",
"WAGES_NSA_P1Q1QL4": "WAGES_NSA_P1M1ML12_3MMA",
"UNEMPLRATE_SA_D1Q1QL1": "UNEMPLRATE_SA_D3M3ML3",
}
for key, value in dict_repl.items():
dfx["xcat"] = dfx["xcat"].str.replace(key, value)
It is important to assess data availability before conducting any analysis. It allows to identify any potential gaps or limitations in the dataset, which can impact the validity and reliability of analysis and ensure that a sufficient number of observations for each selected category and cross-section is available as well as determining the appropriate time periods for analysis.
msm.check_availability(dfx, xcats=main + xtra, cids=cids, missing_recent=False)
msm.check_availability(dfx, xcats=rets, cids=cids, missing_recent=False)
Transformations and checks #
Features #
Labor market #
Excess wage growth #
Excess wage growth here is defined as wage growth per unit of output in excess of the effective estimated inflation target. Excess wage growth refers to the increase in wages relative to the growth in productivity or output, beyond what is considered consistent with the targeted level of inflation. It indicates a situation where wages are rising at a faster pace than can be justified by the prevailing inflation rate and the overall increase in economic output. Excess wage growth can contribute to inflationary pressures in the economy.
cidx = cids_dmeq
calcs = [
"LPGT = RGDP_SA_P1Q1QL4_20QMM - WFORCE_NSA_P1Y1YL1_5YMM ", # labor productivity growth trend
"XWAGES_NSA_P1M1ML12_3MMA = WAGES_NSA_P1M1ML12_3MMA - LPGT - INFTEFF_NSA ", # expected nominal GDP growth
]
dfa = msp.panel_calculator(
dfx,
calcs=calcs,
cids=cids,
)
dfx = msm.update_df(dfx, dfa)
The macrosynergy package provides two useful functions,
view_ranges()
and
view_timelines()
, which facilitate the convenient visualization of data for selected indicators and cross-sections. These functions assist in plotting means, standard deviations, and time series of the chosen indicators.
xcatx = ["WAGES_NSA_P1M1ML12_3MMA", "INFTEFF_NSA", "LPGT"]
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_ranges(
dfx,
cids=cidx,
xcats=xcatx,
kind="bar",
sort_cids_by="mean",
title=f"Means and standard deviations of excess wage growth components, since {sdate}",
xcat_labels=[
"Local wages, % oya, 3-month moving average",
"Effective inflation target",
"Labor productivity growth trend",
],
size=(12, 5),
start=sdate,
)
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
title="Excess wage growth components",
xcat_labels=[
"Local wages, % oya, 3-month moving average",
"Effective inflation target",
"Labor productivity growth trend",
],
legend_fontsize=17,
same_y=False,
all_xticks=True,
title_fontsize=27,
)
xcatx = [
"WAGES_NSA_P1M1ML12_3MMA",
"XWAGES_NSA_P1M1ML12_3MMA",
]
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
title="Wage growth, outright and in excess of productivity growth and inflation target, %oya, 3mma",
title_fontsize=27,
legend_fontsize=17,
xcat_labels=["Wage growth", "Excess wage growth"],
)
Excess employment growth #
To proxy the impact of the business cycle state on employment growth, a common approach is to calculate the difference between employment growth and the long-term median of workforce growth. This difference is often referred to as “excess employment growth.” By calculating excess employment growth, one can estimate the component of employment growth that is attributable to the business cycle state. This measure helps to identify deviations from the long-term trend and provides insights into the cyclical nature of employment dynamics.
calcs = ["XEMPL_NSA_P1M1ML12_3MMA = EMPL_NSA_P1M1ML12_3MMA - WFORCE_NSA_P1Y1YL1_5YMM "]
dfa = msp.panel_calculator(dfx, calcs=calcs, cids=cids, blacklist=None)
dfx = msm.update_df(dfx, dfa)
xcatx = [
"EMPL_NSA_P1M1ML12_3MMA",
"XEMPL_NSA_P1M1ML12_3MMA",
]
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
legend_fontsize=17,
title="Employment growth",
title_fontsize=27,
xcat_labels=[
"Employment growth, 3-month moving average",
"Excess employment growth, 3-month moving average",
],
)
Excess unemployment rate #
Here we take readily available unemployment gaps indicators, showing unemployment rate, seasonally adjusted: 3-month moving average minus the 5-year/10-year moving average
xcatx = [
"UNEMPLRATE_SA_3MMAv5YMM",
"UNEMPLRATE_SA_3MMAv10YMM",
]
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
legend_fontsize=17,
title="Unemployment gaps",
title_fontsize=27,
xcat_labels=[
"Unemployment gap, 3-month moving average vs 5-year moving median",
"Unemployment gap, 3-month moving average vs 10-year moving median",
],
)
Composite labor tightness scores (DM) #
We calculate composite zn-scores of Excess employment growth, Excess wage growth, and Unemployment gap with the function
make_zn_scores()
. We set the cutoff value (threshold) for winsorization at 2 standard deviations.
calcs = [
"XEMPL_TREND_NEG = - XEMPL_NSA_P1M1ML12_3MMA ",
"XWAGES_TREND_NEG = - XWAGES_NSA_P1M1ML12_3MMA ",
"XURATE_3Mv5Y = UNEMPLRATE_SA_3MMAv5YMM ",
]
dfa = msp.panel_calculator(dfx, calcs=calcs, cids=cids, blacklist=None)
dfx = msm.update_df(dfx, dfa)
labs = [
"XEMPL_TREND_NEG",
"XWAGES_TREND_NEG",
"XURATE_3Mv5Y",
]
xcatx = labs
cidx = cids_dmeq
dfa = pd.DataFrame(columns=list(dfx.columns))
for xc in xcatx:
dfaa = msp.make_zn_scores(
dfx,
xcat=xc,
cids=cidx,
sequential=True,
min_obs=261 * 5,
neutral="zero",
pan_weight=0.5, # variance estimated based on panel and cross-sectional variation
thresh=2,
postfix="_ZN",
est_freq="m",
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
labz = [x + "_ZN" for x in labs]
xcatx = labz
cidx = cids_dmeq
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
title="Labor market slack, constituent z-scores (rolling out of sample), ",
title_fontsize=27,
xcat_labels=[
"Employment versus workforce growth, %oya, 3mma, negative",
"Wage growth over productivity growth and inflation target, %oya, 3mma, negative",
"Unemployment rate, difference from 5-year median",
],
legend_fontsize=17,
)
The individual category scores are combined into a single labor market tightness score using
linear_composite()
method from the
macrosynergy
package. The method allows for the specification of weights for each category, and the weights can be time-varying. Here we use equal weights for all categories.
xcatx = labz
cidx = cids_dmeq
dfa = msp.linear_composite(
df=dfx,
xcats=xcatx,
cids=cidx,
complete_xcats=False,
new_xcat="LABSLACK_CZS",
)
dfx = msm.update_df(dfx, dfa)
xcatx = ["LABSLACK_CZS"]
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
title="Labor market slack",
title_fontsize=27,
)
Inflation #
Inflation shortfall #
Focus on core inflation, backfilled with headline inflation countries that do not provide core inflation back to 1990. CPIH indicators (headline consumer price inflation) for selected currencies usually have a longer history than CPIC (annual core consumer price inflation, preferred by the central bank or market), so we are using CPIC if available and backfill the series with CPIH data otherwise.
dfa = pd.DataFrame(columns=list(dfx.columns))
chgs = ["SA_P1M1ML12", "SJA_P6M6ML6AR"]
for chg in chgs:
dfaa = msp.linear_composite(
dfx,
xcats=[f"CPIC_{chg}", f"CPIH_{chg}"],
cids=cids_dmeq,
weights=[
0.999,
0.001,
], # de-facto only uses CPIH when CPIC is missing, otherwise uses CPIC
complete_xcats=False,
new_xcat=f"CPICH_{chg}",
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
Here we display the core inflation relative to the estimated extended official target for next year, % over a year ago.
xcatx = [
"CPICH_SA_P1M1ML12",
"INFTARGET_NSA",
]
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
legend_fontsize=17,
title="Inflation series and target",
title_fontsize=27,
xcat_labels=["Core inflation", "Inflation target"],
)
We create here two new categories
XCPICH_SA_P1M1ML12_SFALL
and
XCPICH_SJA_P6M6ML6AR_SFALL
, which are effectively the difference between the official target and the inflation rate (mostly core inflation, as described in the cell above)
chgs = ["SA_P1M1ML12", "SJA_P6M6ML6AR"]
calcs = [f"XCPICH_{chg}_SFALL = - CPICH_{chg} + INFTARGET_NSA " for chg in chgs]
dfa = msp.panel_calculator(
dfx,
calcs=calcs,
cids=cids,
)
dfx = msm.update_df(dfx, dfa)
xinfs = ["XCPICH_SA_P1M1ML12_SFALL", "XCPICH_SJA_P6M6ML6AR_SFALL"]
xcatx = xinfs
cidx = cids_dmeq
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
title="Inflation shortfall",
title_fontsize=27,
all_xticks=True,
legend_fontsize=17,
)
Excess inflation scores #
As before, for labor market indicators, we normalize values for the composite excess inflation metric around zero based on the average of the whole panel and corresponding cross-section (pan_weight=0.5), using
make_zn_scores()
, and then create an average of the two excess inflation scores using
linear_composite()
. More information on the
make_zn_scores()
and
linear_composite()
functions can be found in the
Introduction to Macrosynergy package
notebook.
cidx = cids_dmeq
sdate = "1990-01-01"
dfa = pd.DataFrame(columns=list(dfx.columns))
for xc in xinfs:
dfaa = msp.make_zn_scores(
dfx,
xcat=xc,
cids=cidx,
sequential=True,
min_obs=261 * 5,
neutral="zero",
pan_weight=0.5, # variance estimated based on panel and cross-sectional variation
thresh=2,
postfix="_ZN",
est_freq="m",
)
dfa = msm.update_df(dfa, dfaa)
xinfz = [x + "_ZN" for x in xinfs]
comp_xinfz = ["XCPI_SFALL_CZS"]
dfaa = msp.linear_composite(
df=dfa,
xcats=xinfz,
cids=cidx,
complete_xcats=False,
new_xcat=comp_xinfz[0],
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
xcatx = xinfz + comp_xinfz
cidx = cids_dmeq
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
title="Core inflation shortfall, constituent z-scores (rolling out of sample)",
title_fontsize=27,
xcat_labels=[
"Effective inflation target minus core CPI, %oya",
"Effective inflation target minus core CPI, %6m/6m, saar",
"Effective inflation target minus core CPI, composite z-score",
],
legend_fontsize=17,
)
Equity carry #
Excess real carry #
“Excess real equity carry” refers to a measure of the potential returns from holding a country’s main equity index, adjusted for inflation and interest rates. The “neutral level” for the excess real equity carry is set based on a carry-to-volatility ratio (“Carry Sharpe”) of 0.3. In other words, a real carry is considered attractive if the resulting Sharpe ratio from the carry return alone is at least 0.3. The Sharpe ratio is a measure of risk-adjusted returns, indicating the excess return per unit of risk.
# Based on minimum carry Sharpe of approximately 0.3
calcs = [
"XEQCRR_NSA = EQCRR_NSA - 4",
"XEQCRR_VT10 = EQCRR_VT10 - 3",
]
dfa = msp.panel_calculator(
dfx,
calcs=calcs,
cids=cids,
)
dfx = msm.update_df(dfx, dfa)
xcrs = dfa["xcat"].unique().tolist()
xcatx = xcrs
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
legend_fontsize=17,
title="Excess carry series",
title_fontsize=27,
xcat_labels=["Excess real carry", "Vol-targeted excess real carry"],
)
Carry scores #
As before, we normalize the excess real equity carry using
make_zn_scores()
and create a simple average of z-scored
XEQCRR_NSA
and
XEQCRR_VT10
.
cidx = cids_dmeq
sdate = "1990-01-01"
dfa = pd.DataFrame(columns=list(dfx.columns))
for xc in xcrs:
dfaa = msp.make_zn_scores(
dfx,
xcat=xc,
cids=cidx,
sequential=True,
min_obs=261 * 5,
neutral="zero",
pan_weight=0.5, # variance estimated based on panel and cross-sectional variation
thresh=2,
postfix="_ZN",
est_freq="m",
)
dfa = msm.update_df(dfa, dfaa)
xcrz = [x + "_ZN" for x in xcrs]
dfaa = msp.linear_composite(
df=dfa,
xcats=xcrz,
cids=cidx,
complete_xcats=False,
new_xcat="XEQCRR_CZS",
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
xcatx = xcrz
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
title="Excess real equity carry scores, constituent z-scores (rolling out of sample) ",
title_fontsize=20,
xcat_labels=[
"Real carry, %ar",
"based on 10% vol target",
],
legend_fontsize=17,
)
Composite macro scores #
We re-score all three composites - Labor market slack, Inflation shortfall, and Excess real equity carry to equalize standard deviations (and still using 2 standard deviations as threshhold).
cidx = cids_dmeq
comps = ["LABSLACK_CZS", "XCPI_SFALL_CZS", "XEQCRR_CZS"]
dfa = pd.DataFrame(columns=list(dfx.columns))
for cp in comps:
dfaa = msp.make_zn_scores(
dfx,
xcat=cp,
cids=cidx,
sequential=True,
min_obs=261 * 5,
neutral="zero",
pan_weight=1,
thresh=2,
postfix="_ZN",
est_freq="m",
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
compz = [x + "_ZN" for x in comps]
xcatx = compz
cidx = cids_dmeq
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
title="Macro support scores, standard deviations, based on labor market, inflation, and real carry",
title_fontsize=27,
xcat_labels=["Labor market slack", "Core inflation shortfall", "Real excess carry"],
legend_fontsize=17,
)
Cross-category scores #
Here we create cross-category macro composite measures, based on the three constituent categories (labor market slack, inflation shortfall, and excess real equity carry). Since equity carry based on reliable sets of earnings and dividend predictions for the equity index is only available from 2004 for most countries, prior to 2004 we look at the macro composite measure, based on only two constituent categories (labor market slack and inflation shortfall)
cidx = cids_dmeq
# Use core inflation as countries are DM only
dict_mcz = {
"MACRO_CZS_ALL": {
"xcats": ["LABSLACK_CZS_ZN", "XCPI_SFALL_CZS_ZN", "XEQCRR_CZS_ZN"],
"weights": [1, 1, 1],
},
"MACRO_CZS_XCRY": {
"xcats": ["LABSLACK_CZS_ZN", "XCPI_SFALL_CZS_ZN"],
"weights": [1, 1],
},
}
dfa = pd.DataFrame(columns=list(dfx.columns))
for k, v in dict_mcz.items():
dfaa = msp.linear_composite(
df=dfx,
xcats=v["xcats"],
cids=cidx,
complete_xcats=False,
new_xcat=k,
weights=v["weights"],
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
macro_czs = list(dict_mcz.keys())
xcatx = ["MACRO_CZS_ALL", "MACRO_CZS_XCRY"]
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
title="Macro cross-category scores",
xcat_labels=["All three categories", "Excluding carry"],
legend_fontsize=17,
title_fontsize=27,
)
xcatx = ["MACRO_CZS_ALL"]
cidx = cids_dmeq
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
all_xticks=True,
title="Aggregate macro support scores, based on labor market slack, inflation shortfall, and excess real carry (2004 for non-U.S.)",
title_fontsize=27,
)
Weighted global scores #
We create a composite of the macro support scores, using as weights the respective
share in world GDP (USD terms)
. The
linear_composite()
function creates a new cross-section with postfix
GLB
for “global”
xcatx = macro_czs
cidx = cids_dmeq
dfa = pd.DataFrame(columns=list(dfx.columns))
for xc in xcatx:
dfaa = msp.linear_composite(
df=dfx,
xcats=xc,
cids=cidx,
complete_xcats=False,
weights="USDGDPWGT_SA_3YMA",
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
… and display the global macro scores on a timeline
xcatx = macro_czs
cidx = ["GLB"]
sdate = "1990-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
start=sdate,
end="2023-06-16",
size=(10, 5),
title=None,
xcat_labels=["All three categories", "Excluding carry"],
)
xcatx = ["MACRO_CZS_ALL"]
cidx = ["GLB"]
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
start=sdate,
end="2023-06-16",
size=(14, 7),
title="Global macro support score",
title_fontsize=17,
xcat_labels=["Nominal GDP-weighted average"],
label_adj=0.2,
)
Equity return momentum and modification #
Standard trend #
Here we take a standard equity trend indicator as the difference between 200-day and 50-day moving averages
fxrs = ["EQXR_NSA", "EQXR_VT10"]
cidx = cids_dmeq
calcs = []
for fxr in fxrs:
calc = [
f"{fxr}I = ( {fxr} ).cumsum()",
f"{fxr}I_50DMA = {fxr}I.rolling(50).mean()",
f"{fxr}I_200DMA = {fxr}I.rolling(200).mean()",
f"{fxr}I_50v200DMA = {fxr}I_50DMA - {fxr}I_200DMA",
]
calcs += calc
dfa = msp.panel_calculator(dfx, calcs, cids=cidx)
dfx = msm.update_df(dfx, dfa)
eqtrends = ["EQXR_NSAI_50v200DMA", "EQXR_VT10I_50v200DMA"]
xcatx = ["EQXR_NSAI_50DMA", "EQXR_NSAI_200DMA"]
cidx = cids_dmeq
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
size=(14, 8),
all_xticks=True,

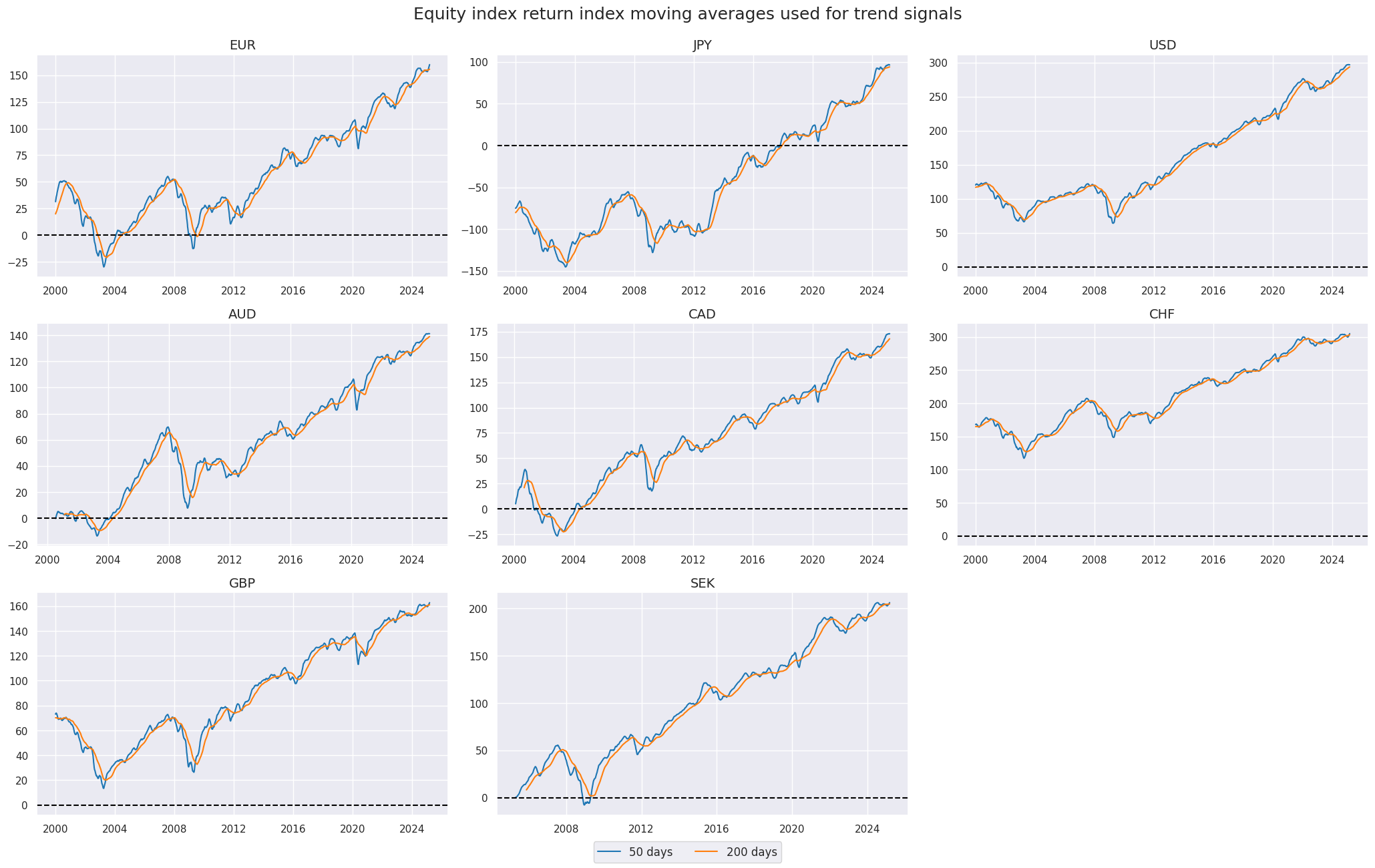

title="Equity index return index moving averages used for trend signals",
title_fontsize=18,
xcat_labels=["50 days", "200 days"],
label_adj=0.15,
)
xcatx = eqtrends
cidx = cids_dmeq
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
size=(14, 8),
all_xticks=True,
title_fontsize=27,
title="Equity trends",
xcat_labels=["No vol-targeting", "Vol-targeting"],
label_adj=0.175,
)
Modified trend #
In preparation for trend modification, we z-score the trends and the modified macro signals.
xcatx = eqtrends + macro_czs
cidx = cids_dmeq
for xc in xcatx:
dfaa = msp.make_zn_scores(
dfx,
xcat=xc,
cids=cidx,
sequential=True,
min_obs=522, # oos scaling after 2 years of panel data
est_freq="m",
neutral="zero",
pan_weight=1,
thresh=3,
postfix="Z",
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
eqtrendz = [tr + "Z" for tr in eqtrends]
macro_czsz = [mc + "Z" for mc in macro_czs]
Next, we apply a modification, allowing for adjustments to the strength of the trend signal based on the quantamental information captured by the external strength z-score. The trend remains the dominant signal, but we allow quantamental information to increase the trend signal by up to 100% and to reduce it by up to zero. However, quantamental information does not “flip” the signal. The modification coefficient ensures that the adjustment remains within [0,2] interval, hence preventing extreme flips or amplifications of the trend signal.
The linear modification coefficient applied to the trend is based on the external strength z-score. The application depends on the sign of the concurrent trend signal.
-
If the trend signal is positive external strength it enhances it and external weakness reduces it. The modification coefficient uses a sigmoid function that translates the external strength score such that for a value of zero it is 1, for values of -1 and 1 it is 0.25 and 1.75 respectively and for its minimum and maximum of -3 and 3 it is 0 zero and 2 respectively.
-
If the trend signal is negative the modification coefficient depends negatively on external strength but in the same way.
This can be expressed by the following equation:
where
This means for a positive trend:
and for a negative trend:
def sigmoid(x):
return 2 / (1 + np.exp(-2 * x))
ar = np.arange(-3, 3.2, 0.1)
plt.figure(figsize=(6, 4), dpi=80)
plt.plot(ar, sigmoid(ar))
plt.title(
"Sigmoid function that translates macro tail- and headwind scores into modification coefficients"
)
plt.show()
We first calculate the base modification coefficients for all external strength scores, as applicable for positive trend scores, and then apply it to the trend scores in dependence upon their signs.
macro_modz = ["MACRO_CZS_ALLZ", "LABSLACK_CZS_ZN", "XCPI_SFALL_CZS_ZN", "XEQCRR_CZS_ZN"]
calcs = []
for zd in macro_modz:
calcs += [f"{zd}_C = ( {zd} ).applymap( lambda x: 2 / (1 + np.exp( - 2 * x)) ) "]
dfa = msp.panel_calculator(dfx, calcs=calcs, cids=cidx)
dfx = msm.update_df(dfx, dfa)
coefs = list(dfa["xcat"].unique())
Here is a timeline of the coefficients for the composite indicator. The value for the coefficient is between 0 and 2, with values below 1 mean reduction of the original signal and values above 1 mean strengthening of the original signal.
xcatx = coefs
cidx = cids_dmeq
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
size=(14, 8),
all_xticks=True,
label_adj=0.2,
)
Calculation of the trend sign-contingent coefficient and adjusted trends is based on the below formula.
((1
-
sign(trend))
+
sign(trend)
*
coef)
*
trend
calcs = []
for tr in eqtrendz:
for xs in macro_modz:
trxs = tr.split("TREND")[0] + "m" + xs.split("_")[0]
calcs += [f"{trxs}_C = (1 - np.sign( {tr} )) + np.sign( {tr} ) * {xs}_C"]
calcs += [f"{trxs} = {trxs}_C * {tr}"]
dfa = msp.panel_calculator(dfx, calcs=calcs, cids=cids_dmeq)
dfx = msm.update_df(dfx, dfa)
eqtrendz_mod = [xc for xc in dfa["xcat"].unique() if not xc.endswith("_C")]
The below chart panel shows the time series of standard and modified trend signals. Naturally, modification never changes the sign of the signal and the direction of the market position. However, it does alter the relative size of the market risk taken. For example, the strong macro support for local equity markets in the 2010s magnified risk-taking in positive trends and reduced risk-taking in negative trends. Similarly, the adverse macro trends in some countries in the 2000s resulted in greater emphasis on short positions prior to the great financial crisis.
xcatx = ["EQXR_NSAI_50v200DMAZ", "EQXR_NSAI_50v200DMAZmMACRO"]
cidx = cids_dmeq
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=3,
cumsum=False,
start=sdate,
same_y=False,
size=(14, 8),
all_xticks=True,
title="Standard trend signal scores and modified trend signal scores",
title_fontsize=18,
xcat_labels=["standard", "modified by macro support score"],
label_adj=0.12,
)
Weighted global trends #
We weight the trend signals by respective GDP share to create a composite equity trend signal, creating a global (with postfix
_GLB
signal)
xcatx = eqtrendz + eqtrendz_mod
cidx = cids_dmeq
dfa = pd.DataFrame(columns=list(dfx.columns))
for xc in xcatx:
dfaa = msp.linear_composite(
df=dfx,
xcats=xc,
cids=cidx,
complete_xcats=False,
weights="USDGDPWGT_SA_3YMA",
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
xcatx = ["EQXR_NSAI_50v200DMAZ", "EQXR_NSAI_50v200DMAZmMACRO"]
cidx = ["GLB"]
sdate = "2000-01-01"
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
start=sdate,
end="2023-06-16",
size=(8, 4),
title="Global standard trend signal score and modified trend signal score",
title_fontsize=14,
xcat_labels=["standard", "modified by macro support score"],
label_adj=0.12,
)
Targets #
As target we choose standard Equity index future returns EQXR_NSA
xcatx = ["EQXR_NSA"]
cidx = cids_dmeq
sdate = "1990-01-01"
msp.view_ranges(
dfx,
cids=cidx,
xcats=xcatx,
kind="box",
sort_cids_by="std",
ylab="% daily rate",
start=sdate,
title="Boxplots of equity index future returns, all available history",
)
msp.view_timelines(
dfx,
xcats=xcatx,
cids=cidx,
ncol=4,
cumsum=True,
start=sdate,
same_y=True,
size=(12, 12),
all_xticks=True,
title="Equity index future returns",
title_fontsize=27,
legend_fontsize=17,
)
We create a “Global equity index future return” as GDP share weighted average of cross-sectional trend signal scores” by using the GDP-share weights of the countries in the sample.
xcatx = ["EQXR_NSA"]
cidx = cids_dmeq
dfa = pd.DataFrame(columns=list(dfx.columns))
for xc in xcatx:
dfaa = msp.linear_composite(
df=dfx,
xcats=xc,
cids=cidx,
complete_xcats=False,
weights="USDGDPWGT_SA_3YMA",
)
dfa = msm.update_df(dfa, dfaa)
dfx = msm.update_df(dfx, dfa)
Value checks #
Simple trend and modifiers #
Specs and panel test #
Using standard 50/200 equity trend as the main signal, the next chart plots the relationship between the main signal and subsequent equity index future return
eqtrendz_nsa = [et for et in eqtrendz + eqtrendz_mod if "NSA" in et]
sigs = eqtrendz_nsa
ms = eqtrendz_nsa[0]
oths = list(set(sigs) - set([ms])) # other signals
targ = "EQXR_NSA"
cidx = cids_dmeq + ["GLB"]
start = "1990-01-01"
dict_es = {
"sig": ms,
"rivs": oths,
"targ": targ,
"cidx": cidx,
"start": start,
"black": None,
"srr": None,
"pnls": None,
}
The scatterplot below shows a highly significant positive correlation of 0.07 between the unmodified trend signal and subsequent returns
dix = dict_es
start = "2000-01-01"
cidx = cids_dmeq
sig = dix["sig"]
targ = dix["targ"]
blax = dix["black"]
crx = msp.CategoryRelations(
dfx,
xcats=[sig, targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
blacklist=blax,
)
crx.reg_scatter(
labels=False,
coef_box="lower left",
xlab="Global standard trend signal, monthly last value",
ylab="Equity index future returns, next-month sum",
title="Global standard trend signal and next-month cumulative equity returns, since 2000",
size=(10, 6),
)
Using the 50/200 equity trend (modified by macro support) as the main signal, the next chart plots the relationship between this modified main signal and subsequent equity index future return. The correlation coefficient has increased. The correlation remained highly significant.
dix = dict_es
sig = "EQXR_NSAI_50v200DMAZmMACRO"
start = "2000-01-01"
cidx = cids_dmeq
targ = dix["targ"]
blax = dix["black"]
crx = msp.CategoryRelations(
dfx,
xcats=[sig, targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
blacklist=blax,
)
crx.reg_scatter(
labels=False,
coef_box="lower left",
xlab="Global modified trend signal, monthly last value",
ylab="Equity index future returns, next-month sum",
title="Global modified trend signal and next-month cumulative equity returns, since 2000",
size=(10, 6),
)
Performing similar correlation analysis for the global standard trend scores at a monthly frequency shows that the relationship has been positively and significantly related to subsequent global monthly equity index future returns.
dix = dict_es
sig = "EQXR_NSAI_50v200DMAZ"
start = "2000-01-01"
cidx = ["GLB"]
targ = dix["targ"]
blax = dix["black"]
crx = msp.CategoryRelations(
dfx,
xcats=[sig, targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
blacklist=blax,
)
crx.reg_scatter(
labels=False,
coef_box="lower left",
title="Global standard trend score and subsequent equity index future returns",
xlab="Standard 50 versus 200 day moving average trend score, GDP-weighted, month end",
ylab="Equity index future returns, GDP-weighted, next month",
size=(10, 6),
prob_est="map",
)
Modifying the trend signals by macro support scores enhances correlation and significance.
dix = dict_es
sig = "EQXR_NSAI_50v200DMAZmMACRO"
cidx = ["GLB"]
start = "2000-01-01"
targ = dix["targ"]
blax = dix["black"]
crx = msp.CategoryRelations(
dfx,
xcats=[sig, targ],
cids=cidx,
freq="M",
lag=1,
xcat_aggs=["last", "sum"],
start=start,
blacklist=blax,
)
crx.reg_scatter(
labels=False,
coef_box="lower left",
title="Modified global trend score and subsequent equity index future returns",
xlab="Modified global 50 versus 200 day moving average trend score, GDP-weighted, month end",
ylab="Global equity index future returns, GDP-weighted, next month",
size=(10, 6),
prob_est="map",
)
Accuracy and correlation check #
We calculate standard accuracy metrics for standard and modified signals globally
dix = dict_es
start = "2000-01-01"
cidx = ["GLB"]
sig = dix["sig"]
rivs = dix["rivs"]
targ = dix["targ"]
blax = dix["black"]
srr = mss.SignalReturnRelations(
dfx,
cids=cidx,
sigs=[sig] + rivs,
rets=targ,
freqs="M",
start=start,
blacklist=blax,
)
dix["srr"] = srr
dix = dict_es
srrx = dix["srr"]
display(srrx.signals_table().sort_index().astype("float").round(3))
accuracy | bal_accuracy | pos_sigr | pos_retr | pos_prec | neg_prec | pearson | pearson_pval | kendall | kendall_pval | auc | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Return | Signal | Frequency | Aggregation | |||||||||||
EQXR_NSA | EQXR_NSAI_50v200DMAZ | M | last | 0.597 | 0.554 | 0.700 | 0.628 | 0.660 | 0.448 | 0.097 | 0.098 | 0.049 | 0.214 | 0.549 |
EQXR_NSAI_50v200DMAZmLABSLACK | M | last | 0.600 | 0.562 | 0.683 | 0.628 | 0.667 | 0.457 | 0.117 | 0.047 | 0.059 | 0.134 | 0.557 | |
EQXR_NSAI_50v200DMAZmMACRO | M | last | 0.610 | 0.568 | 0.714 | 0.628 | 0.667 | 0.470 | 0.143 | 0.015 | 0.068 | 0.086 | 0.560 | |
EQXR_NSAI_50v200DMAZmXCPI | M | last | 0.600 | 0.554 | 0.724 | 0.628 | 0.657 | 0.450 | 0.140 | 0.017 | 0.058 | 0.143 | 0.546 | |
EQXR_NSAI_50v200DMAZmXEQCRR | M | last | 0.610 | 0.567 | 0.721 | 0.628 | 0.665 | 0.469 | 0.137 | 0.020 | 0.071 | 0.070 | 0.558 |
Naive PnL DM #
We calculate naïve PnLs based on standard rules used in Macrosynergy posts. Positions are taken based on standard and modified trend scores across the 8 developed equity market index futures. Positions are rebalanced monthly with a one-day slippage added for trading. Transaction costs are disregarded because they depend heavily on the value of assets under strategy management. The long-term volatility of the PnL for positions across all currency areas has been set to 10% annualized for ease of presentation. The main finding is that macro-modification roughly has roughly doubled risk-adjusted returns of a directional equity trend-following strategy since 2000. The long-term naïve Sharpe ratio of the standard trend-following strategy has been 0.27. The outperformance developed through four major episodes since 2004.
dix = dict_es
start = "2000-01-01"
sigx = [dix["sig"]] + dix["rivs"]
targ = dix["targ"]
cidx = dix["cidx"]
blax = dix["black"]
naive_pnl = msn.NaivePnL(
dfx,
ret=targ,
sigs=sigx,
cids=cidx,
start=start,
blacklist=blax,
bms=["USD_EQXR_NSA"],
)
for sig in sigx:
naive_pnl.make_pnl(
sig,
sig_neg=False,
sig_op="zn_score_pan",
thresh=3,
rebal_freq="monthly",
vol_scale=10,
rebal_slip=1,
pnl_name=sig + "_PZN",
)
dix["pnls"] = naive_pnl
dix = dict_es
start = "2000-01-01"
cidx = dix["cidx"]
sigx = eqtrendz_nsa[:2]
naive_pnl = dix["pnls"]
pnls = [s + "_PZN" for s in sigx]
dict_labels={"EQXR_NSAI_50v200DMAZ_PZN": "Standard trend score",
"EQXR_NSAI_50v200DMAZmMACRO_PZN": "Modified trend score"}
naive_pnl.plot_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
title="Naive PnLs based on standard trend score and modified trend scores",
xcat_labels=dict_labels,
figsize=(16, 8),
)
The outperformance of the modified trend signal is not very sensitive to the choice of the modifier. All three constituents of the macro support score would have enhanced trend following turns, albeit individually not quite as much as the composite score.
dix = dict_es
start = "2000-01-01"
cidx = dix["cidx"]
sigx = eqtrendz_nsa[:1] + eqtrendz_nsa[2:]
naive_pnl = dix["pnls"]
pnls = [s + "_PZN" for s in sigx]
dict_labels = {
"EQXR_NSAI_50v200DMAZ_PZN": "Standard trend score",
"EQXR_NSAI_50v200DMAZmLABSLACK_PZN": "Modified by labor market score",
"EQXR_NSAI_50v200DMAZmXCPI_PZN": "Modified by inflation score",
"EQXR_NSAI_50v200DMAZmXEQCRR_PZN": "Modified by equity carry score"
}
naive_pnl.plot_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
figsize=(16, 8),
title="Naive PnLs based on standard trend score and various modified trend scores",
xcat_labels=dict_labels
)
Below is the standard performance metrics for the main modified signal and its constituents
dix = dict_es
start = dix["start"]
sigx = [dix["sig"]] + dix["rivs"]
naive_pnl = dix["pnls"]
pnls = [sig + "_PZN" for sig in sigx]
df_eval = naive_pnl.evaluate_pnls(
pnl_cats=pnls,
pnl_cids=["ALL"],
start=start,
)
display(df_eval.transpose())
Return (pct ar) | St. Dev. (pct ar) | Sharpe Ratio | Sortino Ratio | Max 21-day draw | Max 6-month draw | USD_EQXR_NSA correl | Traded Months | |
---|---|---|---|---|---|---|---|---|
xcat | ||||||||
EQXR_NSAI_50v200DMAZ_PZN | 2.757776 | 10.0 | 0.275778 | 0.382876 | -24.288659 | -31.619696 | -0.181642 | 291 |
EQXR_NSAI_50v200DMAZmLABSLACK_PZN | 4.343952 | 10.0 | 0.434395 | 0.61746 | -16.488405 | -22.834053 | -0.132912 | 291 |
EQXR_NSAI_50v200DMAZmMACRO_PZN | 5.46736 | 10.0 | 0.546736 | 0.771616 | -26.406564 | -22.274368 | -0.023698 | 291 |
EQXR_NSAI_50v200DMAZmXCPI_PZN | 4.56421 | 10.0 | 0.456421 | 0.645538 | -25.12452 | -20.814108 | -0.079091 | 291 |
EQXR_NSAI_50v200DMAZmXEQCRR_PZN | 4.91194 | 10.0 | 0.491194 | 0.679217 | -32.495869 | -31.897512 | 0.06326 | 291 |
dix = dict_es
start = dix["start"]
sig = dix["sig"]
naive_pnl = dix["pnls"]
naive_pnl.signal_heatmap(pnl_name=sig + "_PZN", freq="q", start=start, figsize=(16, 7))
